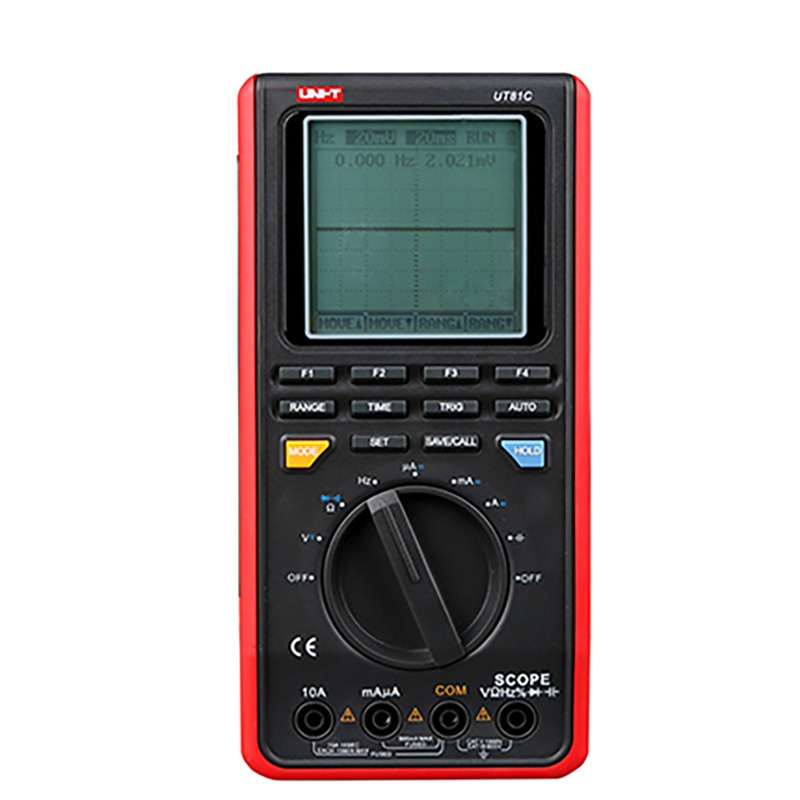

UNI-T UT81C Scope Digital Multimeter (16MHz,80MS/s)
制造商: UNI-T Model: UT81C 来源: China 保障: 12 Month - 报价要求
- 联系
DC voltage (V): 1000V ±(0.8%+8)
AC voltage (V): 750V ±(1%+15)
DC current (A): 10A ±(1%+8)
AC current (A): 10A ±(1.5%+8)
Resistance (Ω): 40MΩ ±(1%+5)
Capacitance (F): 100μF ±(3%+8)
Frequency (Hz): 10Hz~10MHz ±(0.1%+3)
Bandwidth: 16MHz
Sampling rate: 80MS/s
Vertical accuracy: ±(5%+1)
Vertical sensitivity: 20mV/div~500V/div (1-2-5)
Time-base accuracy: ±(0.01%+1)
Time-base range: 50ns/div -5s/div (1-2-5)
Display count: 4000
Auto range: Yes
Duty cycle: 0.1~99.9%
Diode: Yes
Auto power off: Yes
Continuity buzzer: Yes
Display: 160 x 160, monochrome
Trigger types: Auto run/Normal/Single shot
Memory 10 screens and setups: Yes
Contrast and brightness setup: Yes
Low battery indication: Yes
USB interface: Yes
LCD backlight: Yes
Input impedance for DCV: Around 10MΩ
Power: 1.5V battery (R6) x 4
Display: 60mm x 60mm
Product color: Red and grey
Product net weight: 498g
Product size: 200mm x 100mm x 48mm
Standard accessories: Batteries, test lead, alligator clip, USB interface cable, PC software CD
