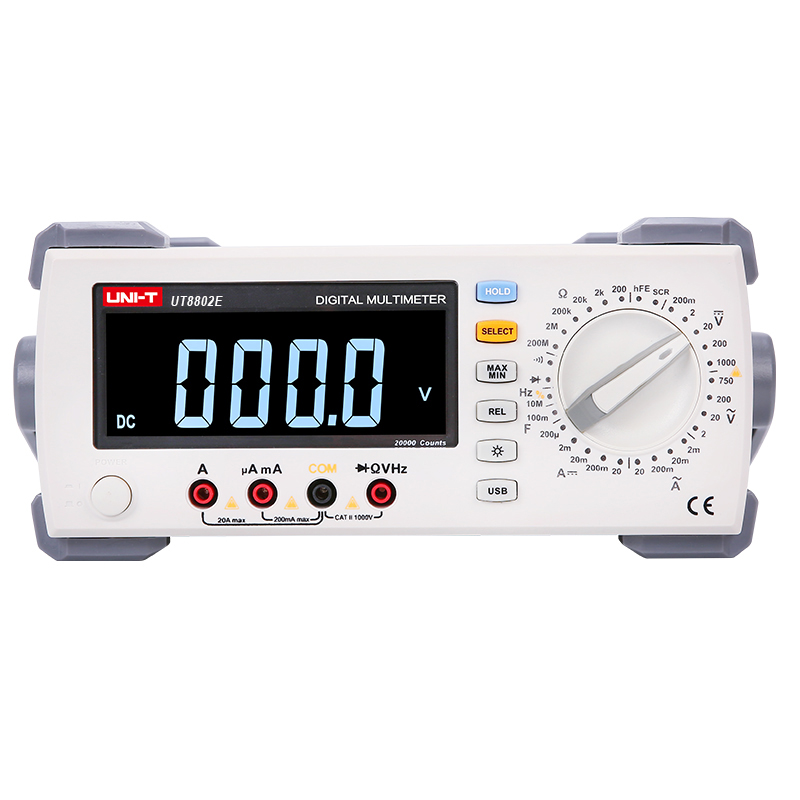

UNI-T UT8802E Benchtop Digital Multimeter (1000V, 20A)

DC (V): 200mV/2V/20V/200V/1000V

AC (V): 2V/20V/200V/750V

DC (A): 200μA/2mA/20mA/200mA/20A

AC (A): 2mA/20mA/200mA/20A

Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ

Capacitance (F): 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF

Frequency (Hz): 200Hz~10MHz

Duty cycle (%): 5%~99%

Display count: 20000

Auto range: No

Bandwidth: 1kHz

True RMS: No

DC voltage: 1000V

AC voltage: 750V

DC current: 20A

AC current: 20A

Resistance: 200MΩ

Capacitance: 100mF

Conductance: No

Frequency: 200Hz~10MHz

Duty cycle: Yes

Temperature: No

Diode test: Yes

Continuity buzzer: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

SCR test: Yes

AC+DC: Yes

Data hold: Yes

LCD backlight: Yes

Input impedance: ≥10MΩ
