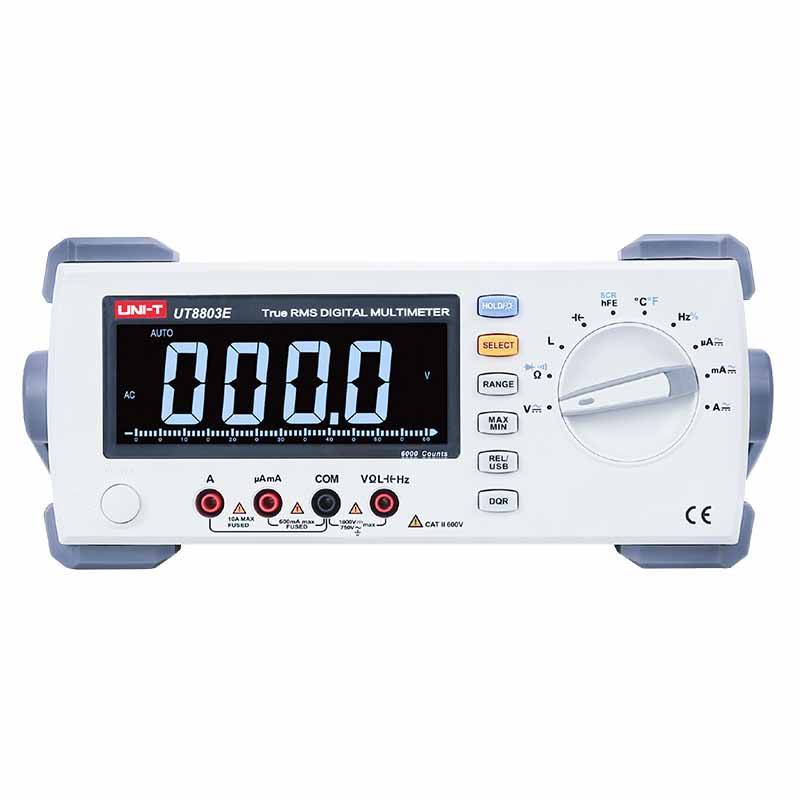

UNI-T UT8803E 台式数显万用表 (1000V, 10A, True RMS)

DC voltage (V) 1000V

AC voltage (V) 750V

DC current (A)10A

AC current (A)

Resistance (Ω) 60MΩ

Capacitance (F) 6mF

Frequency (Hz) 600Hz~20MHz

Duty cycle (%) 5%~95%

Inductance (H) 100H

Display count: 6000

Auto range: Yes

Bandwidth: 100kHz

True RMS: Yes

DC voltage: 1000V

AC voltage: 750V

DC current: 10A

AC current: 10A

Resistance: 60MΩ

Capacitance: 6mF

Conductance: No

Frequency: 600Hz~20MHz

Duty cycle: Yes

Temperature: 1000°C

Diode test: Yes

Continuity buzzer: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

SCR test: Yes

AC+DC: Yes

Data hold: Yes

LCD backlight: Yes

Input impedance: ≥10MΩ
