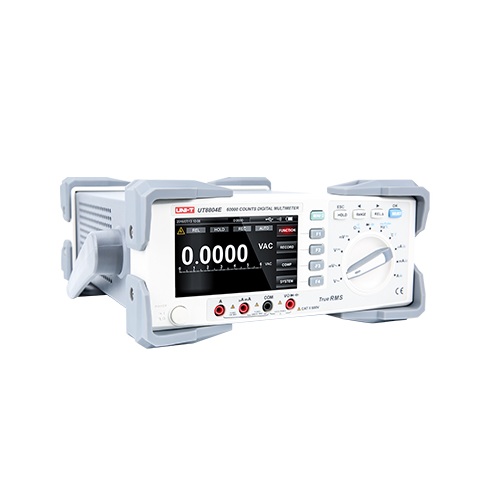

UNI-T UT8804E 台式数显万用表 (±0.025%,1000V, 10A, True RMS)

DC voltage (V) 1000V ±(0.025%+5)

AC voltage (V) 1000V (45Hz~100kHz) ±(0.3%+30)

DC current (A) 10A ±(0.08%+10)

AC current (A) 10A (45Hz~10kHz) ±(0.6%+20)

Resistance (Ω) 60MΩ ±(0.05%+2)

Capacitance (F) 60nS ±(2%+10)

Conductance (nS) 60mF ±(2%+5)

Frequency (Hz) 60MHz ±(0.01%+5)

Duty cycle (%) 10%-90% (10Hz~2kHz) ±(1.2%+30)

Display count: 60000

Auto range: Yes

Bandwidth: 100kHz

True RMS: Yes

DC voltage: 1000V

AC voltage: 1000V

DC current: 20A

AC current: 20A

Resistance: 60MΩ

Capacitance: 60mF

Conductance: 60nS

Frequency: 60Hz

Duty cycle: Yes

Temperature: 1000°C

Diode test: Yes

Continuity buzzer: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

SCR test: No

AC+DC: Yes

Data hold: Yes

LCD backlight: Yes

Input impedance: ≥10MΩ
