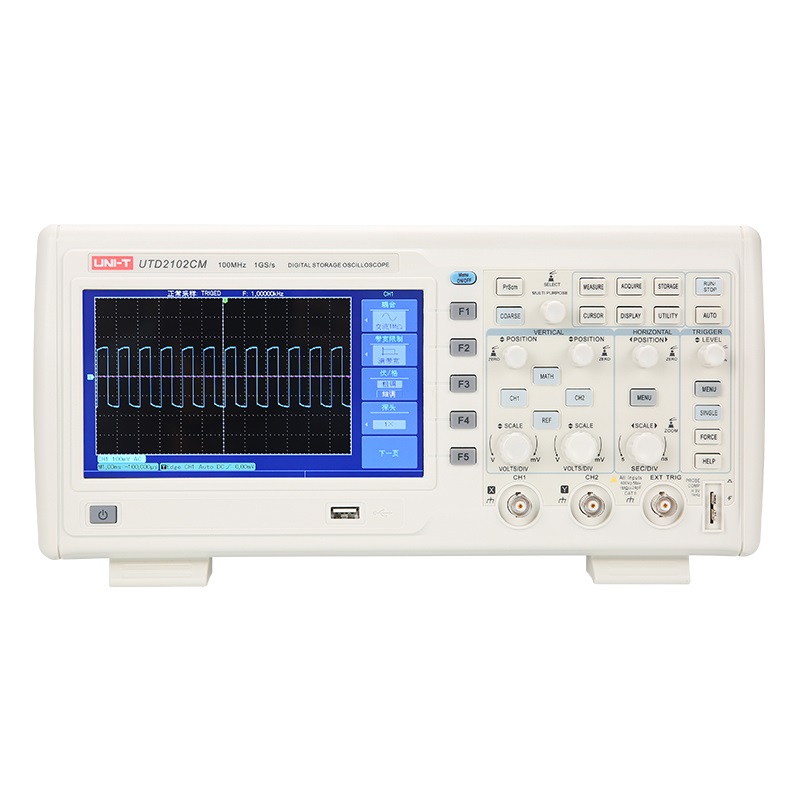

UNI-T UTD2102CM Digital Storage Oscilloscope (100MHz, 1GS/s, 2CH)
制造商: UNI-T Model: UTD2102CM - 联系
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1GS/s
Rise Time: ≤3.5ns
Memory Depth: 32Mpts
Waveform Acquisition Rate: ≥150,000wfms/s
Vertical Sensitivity: 2mV/div~10V/div
Timebase Range: 2ns/div~50s/div
Storage: Setup, Wave, Bitmap, CSV
Trigger Modes: Edge, Pulse, Runt, Video, Slope, Alternate
Interface: USB Device, USB Host, Pass/Fail
Power: 100~240VAC, 50/60Hz
Display: 7 inches TFT LCD, WVGA (800×480)
Product Color: White and grey
Product Net Weight: 2.9kg
Product Size (W×H×D): 332mm × 147mm × 170mm
Standard Accessories: Probe×2 (1×,10× switchable), Power Cord, USB Cable
