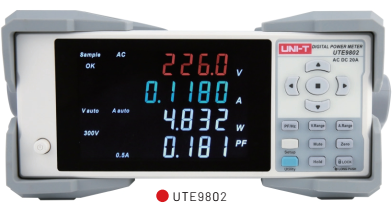

UNI-T UTE9802 Power Meters (600V, 20A, 40Hz~130Hz)

Measurements: V,A,W,PF/HZ

Measurement method: AC DC AC+DC(T-RMS)

Voltage: Range: 3.0V-600V(75V/150V/300V/600V)

         Accuracy: ± (0.4% reading + 0.1 range + 1 digit)

         Resolution: 0.01V

Current: Range: 0.5mA-20.0A(500mA/2A/8A/20A)

         Accuracy: ± (0.4% reading + 0.1 range + 1 digit)

         Resolution: 0.0001A /0.001A/0.01A

Power: Range: 1W~12kW

       Accuracy: ± (0.4% reading + 0.1 range + 1 digit)

       Resolution: 0.001W/0.01W/0.1W/1W

Power factor: Range: -1.000~1.000

              Accuracy:± (0.4% reading + 0.1 range + 1 digit)

Frequency: Range: Fundamental frequency: 40Hz ~ 130Hz, bandwidth: 5kHz


Harmonic analysis: Times: _

                   Accuracy: _

Range switching: Auto / manual

Automatic range switching: Range increase: The measured value exceeds about 110% of the rated range (CF< 3)

                           Range reduction: The measured value is less than about 30% of the rated range (CF< 3)

Preheating time: >30min

Peak current: Maximum display 24A

Maximum input allowed for connection: Voltage700V, Current 24A

Instantaneous allowable maximum input: 1000V,40A(1s)

Input impedance: Voltage: > 5 MΩ, current: < 0.02 Ω

Upper and lower limit function: Four settings for upper and lower limits of power and current: P Hi (Power high),P Lo(Power low),A Hi(Current high),A Lo(Current low)

Interface: RS232, RS485

           9600、 19200、 38400、 115200 optional

Display hold: Yes

Loudspeaker mute: Yes

Key lock: Yes

Power: AC 100V~240V ,50/60Hz

Display: VA Broken code screen, 5 digits, four windows

Product net weight:2.7kg

Product size (W×H×D): 214mmx88mmx340mm
