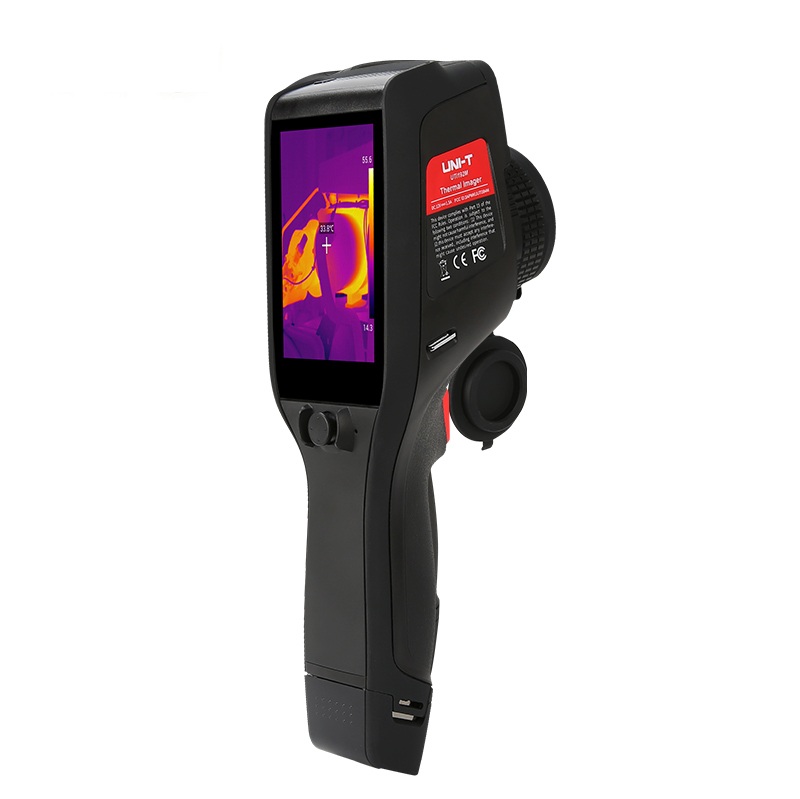

UNI-T UTi192M 热像仪 (192×144pixels,20~1500°C)

IR resolution: 192×144 pixels

Field of view (FOV): 37.8°×28.8°

Thermal sensitivity (NETD): 50mk

Temperature range: 20~150°C/100~650°C/650~1500°C

Spatial resolution (IFOV): 3.45mrad

Frame rate: 25Hz

Measurement accuracy: ±2°C or ±2%

Focus: Manual free

Digital zoom: 1.1×, 4×

Display modes: Thermal, image blending, visible light, PIP

Display screen size: 4”TFT LCD

Auto capture of Hi/Lo temperature: Yes

Isotherm: Yes

Measurement modes: Point, area, line

Wifi: Yes

PC analysis software: Yes

Drop proof: 2m

IP rating: IP54

General Characteristics

Power: Li-ion battery: 7.4V/2300mAh

Product color: Red and grey

Product net weight: 840g

Product size: 274mm x 106mm x 78mm

Standard accessories: Adapter, adapter plugs, battery, USB cable, HDMI cable, SD Card
