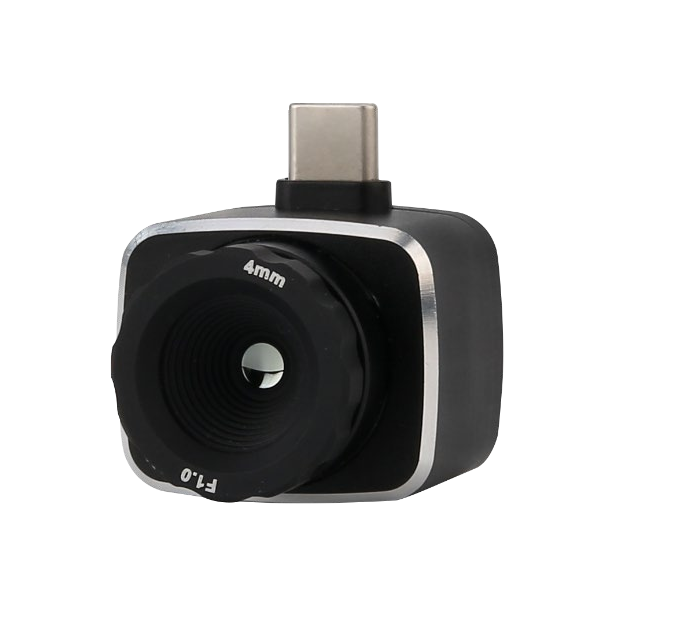

UNI-T UTi722M 适用于Android的智能手机热像仪模块 (256×192pixel)

Technical Data

IR resolution(Pixels): 256×192

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity(NETD): ≤50mK  @25℃

Focus: Manual Focus

Lens size: 21.5mm

Lens focal length: 4.0mm

Field of view(FOV): 44.92°(H) × 33.42°(V)

Measurement modes: Industry & EST screening

Temperature measurement range:  -20℃~450℃

Accuracy: Industry: ±2℃ or ±2% whichever is greater (0℃~450℃)

EST: ±0.5℃ (30℃~40℃)


Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC

On screen analyzer: 3 Points/3 Lines/3 Rectangles

Isotherm: Auto/Below/Above/Section/Manual

Hi/Lo temperature alarm: LCD animation & Buzzer

Hi/Lo temperature tracking: √

Video recording: √

General Characteristics

USB: Type-C

Image storage format: JPEG

Video storage format: MP4

Certificates: CE, UKCA, FCC, RoHS

Languages: ZH, EN, FR, DE, IT, ES, SV

Weight: Approx. 30g

Dimension: 29.5mm×24.5mm×29.5mm

Standard accessories: Type-C extension cable, Hand Strap, Cleaning Cloth,, Cloth Bag, English manual, Documents Download Operation Guide
