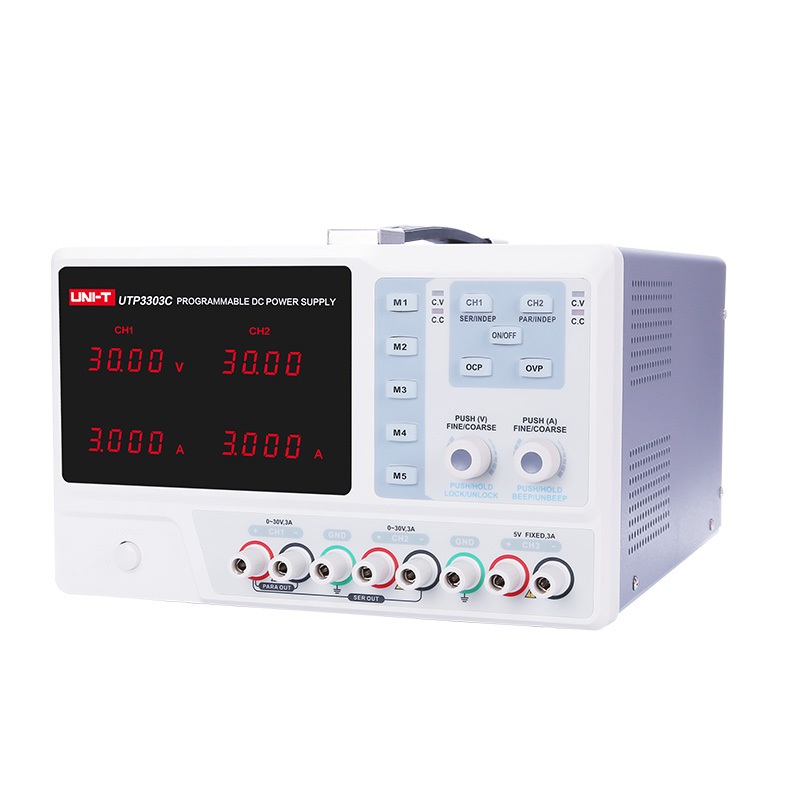

UNI-T UTP3303C DC可调电源 (0~30V/3A)

Output voltage: 0~30V(CH1/CH2), 5V(CH3)

Output current: 0~3A(CH1/CH2), 3A(CH3)

Output power: 195W

Accuracy:

+ Voltage: ＜0.5%+20mV

+ Current: ＜0.5%+5mA

Display: 4 bit

Interfaces: USB Device, RS-232

Programmable: Yes

Over voltage/current protection: Yes

Over temperature protection: Yes

Ripple (20Hz~20MHz): Voltage: ≤1mVrms; Current: ≤3mArms

Power: Input voltage: AC 100V/120V/220V/230V±10%, 50Hz/60Hz

Product net weight: 6.5kg

Product size: 260mm x 176mm x 317mm

Standard accessories: USB and RS-232 interface cables, output cables, PC software CD
