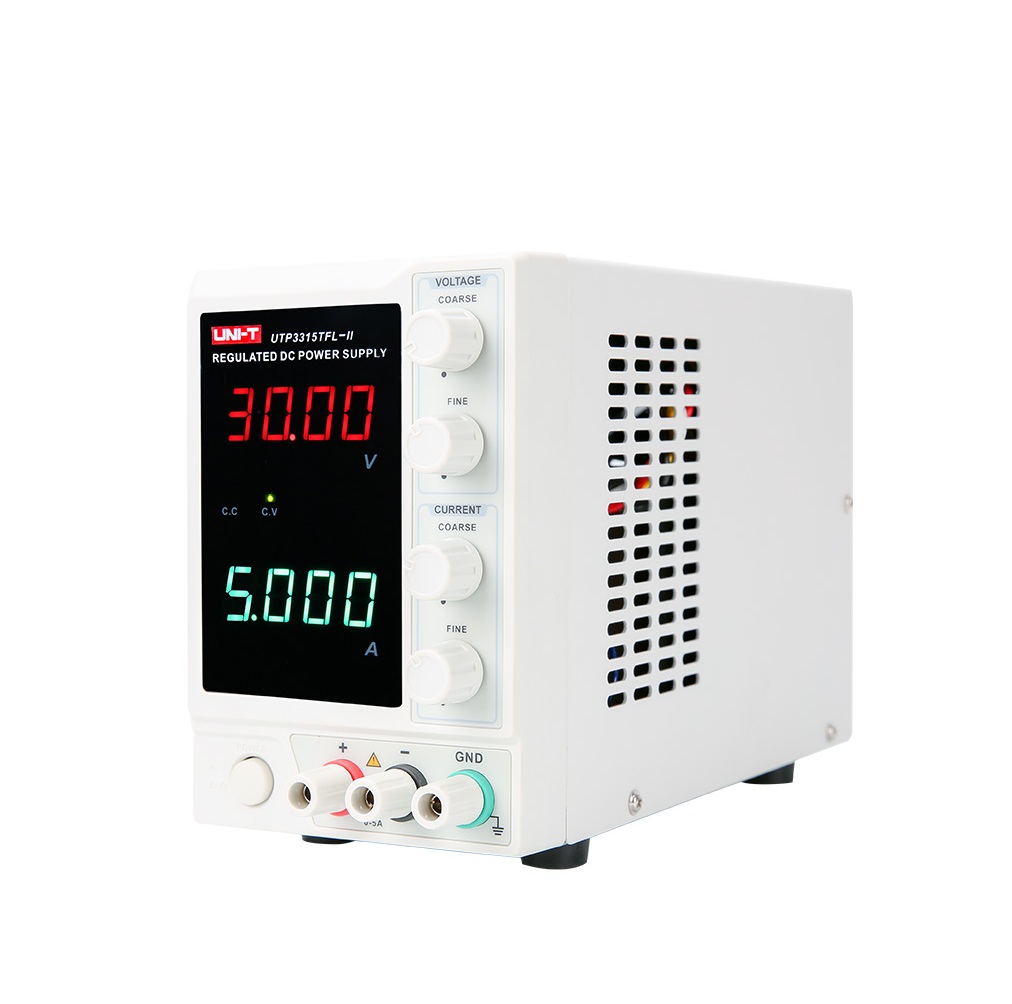

UNI-T UTP3315TFL-II DC可调电源 (0~30V/5A)

Output voltage: 0~30V

Output current: 0~5A

Output power: 150W

Accuracy:

+ Voltage: <0.5%+20mV

+ Current: <0.5%+10mA

Display: 4 digit LED

Interfaces: No

Programmable: No

Over voltage/current protection: No

Over temperature protection: Yes

Ripple and noise ≤2mVrms

Output regulation resolution CV: 10mV (typical), CC: 1mA (typical)

Reliability MTBF(e): ≥2000hrs

Display mode LED voltage and current dual display

Feature Auto conversion of constant voltage and current with current limit protection

General Characteristics

Power Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz

Product color White and grey

Product net weight 4kg

Product size 105mm x 165mm x 249mm

Standard accessories Power cord, output cables

Details

Datasheet


Manual
