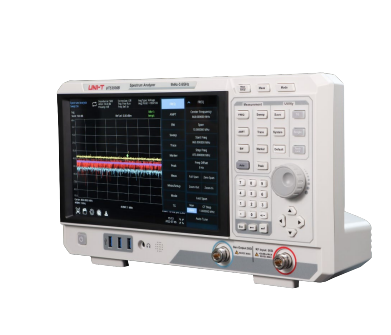

UNI-T UTS3084T 光谱分析仪 (9 kHz~8.4GHz, with tracking generator, factory installed)

Frequency range: 9 kHz~8.4GHz

Frequency resolution: 1Hz

RBW: 1Hz~3MHz

Phase Noise: <-98dBc/Hz (1 GHz,offset 10 kHz, typical)

DANL: -161dBm

Tracking source: 100kHz~6GHz

Display scan points: 40001

Full amplitude accuracy: < 0.7 dB

Shape factor: <4.8:1

Number of traces: 6

Analysis function: Spectrum analysis, EMI analysis, advanced measurement, analog demodulation analysis, digital demodulation analysis

Interface: Trace source output, 10MHz reference input, 10MHz reference output, Ext Trigger, HDMI, USB host, USB device, LAN,3.5mm

Display: 10.1 'TFT LCD (1280x800) touch

Product size(W×H×D): 378 mm×218 mm×120 mm

Product net weight: 4.55kg

With tracking generator, factory installed
