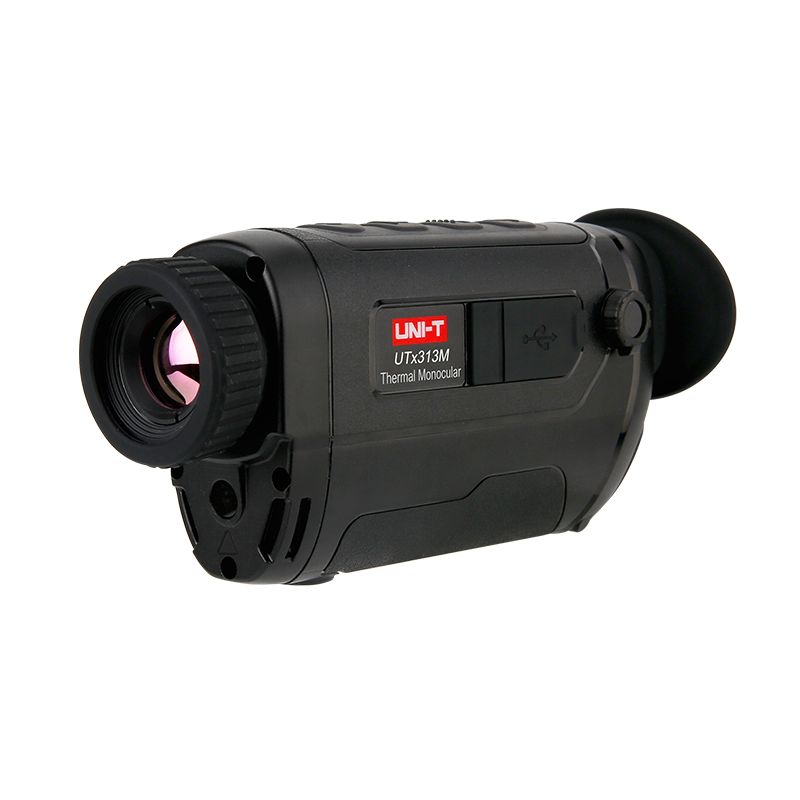

UNI-T UTx313M 热望远镜 (400 × 300pixels)

Technical Data

Display: 0.39″ OLED (1024×768)

Detector type: UFPA (Vanadium oxide)

IR resolution(Pixels): 400×300

Spectral range: 8~14µm

Pixel size: 12μm

Frame rate: ≤50Hz

Thermal sensitivity(NETD): ≤25mK

Focus: Manual focus

Lens focal length: 13mm

Field of view(FOV): 20°(H) x 15°(V)

Eyepiece relief distance: 18mm

Diopter adjustment:  -4D~+5D


Color palettes: Black hot, White hot, Hottest, Ironbow, Rainbow

Digital zoom: 2x, 4x, 8x / 1.0~8x continuous

Scene modes: Bird, Forest, Rock

Calibration modes: Auto, Manual, Background

Stadiametric ranging: √

Smart standby: √

Hot trace: √

E-Compass: √

PIP: √

Video recording: √

Photo viewing: Device Local, PC, APP

Wi-Fi download photo: √

Wi-Fi live streaming: √

Video output: Type-C interface

Analysis software: APP (Android & iOS)

General Characteristics

Battery: 3200mAh detachable Li-ion battery (UT-M20)

Operating time: Approx. 4 hours

USB: Type-C

Storage: 16GB Internal

Image storage format: PNG

Video storage format: MP4

Protection: IP67 & 2m drop proof

Certificates: EAC, CE, FCC, RoHS, FDA

Languages: EN, FR, DE, ES, IT, RU, UA

Weight: 357g

Dimension: 160mmx71.5mmX38.5mm

Standard accessories: Type-C USB cable, Hand Strap, Cloth Bag, Charging Base, Rechargeable Li-ion battery×2, Quick Start Guide, Tool Box
