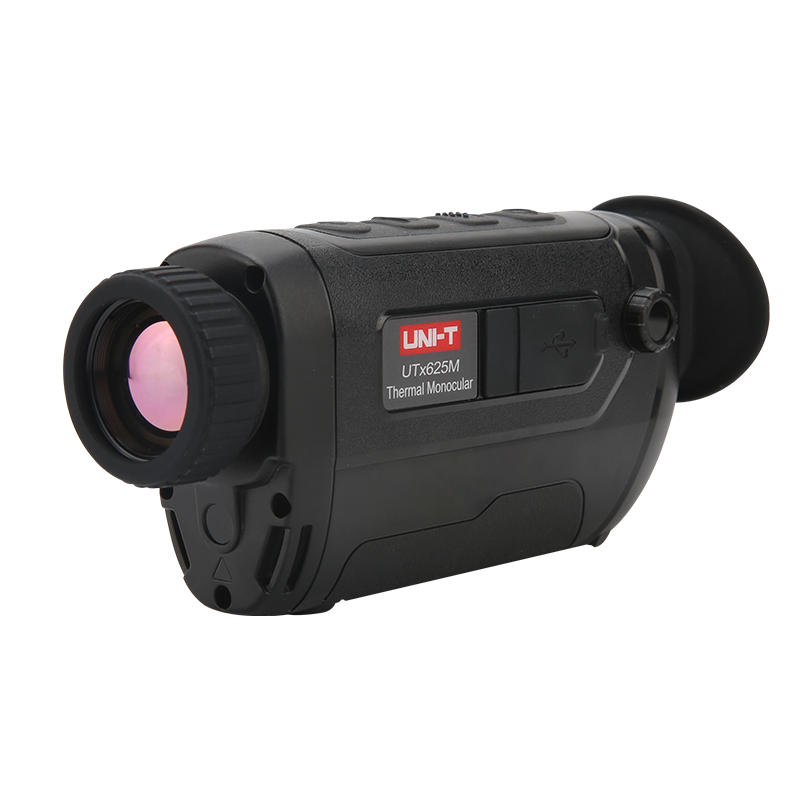

UNI-T UTx625M 热望远镜 (640×512pixel)

Technical Data

Display: 0.39″ OLED (1024×768)

IR resolution(Pixels): 640×512

Spectral range: 8~14µm

Pixel size: 12μm

Frame rate: ≤50Hz

Thermal sensitivity(NETD): ≤25mK

Focus: Manual focus

Lens focal length: 25mm

Field of view(FOV): 17.4°(H) x 14°(V)

Diopter adjustment: -4D~+5D

Functions

Color palettes: Black hot, White hot, Hottest, Ironbow, Rainbow

Digital zoom: 2x, 4x, 8x / 1.0~8x continuous

Scene modes: Bird, Forest, Rock

Calibration modes: Auto, Manual, Background

Stadiametric ranging: √

Smart standby: √

Hot trace: √

E-Compass: √

PIP: √

Video recording: √

Photo viewing: Device Local, PC, APP

Wi-Fi download photo: √

Wi-Fi live streaming: √

Video output: Type-C interface

Analysis software: APP (Android & iOS)

General Characteristics

Battery: 3200mAh detachable Li-ion battery (UT-M20)

Operating time: ≥3.5 hours

USB: Type-C

Storage: 16GB Internal

Image storage format: PNG

Video storage format: MP4

Protection: IP67 & 2m drop proof

Certificates: EAC, CE, FCC, RoHS, FDA

Languages: EN, FR, DE, ES, IT, RU, UA

Weight: 364g (Inc. battery)

Dimension: 160mmx71.5mmX38.5mm
