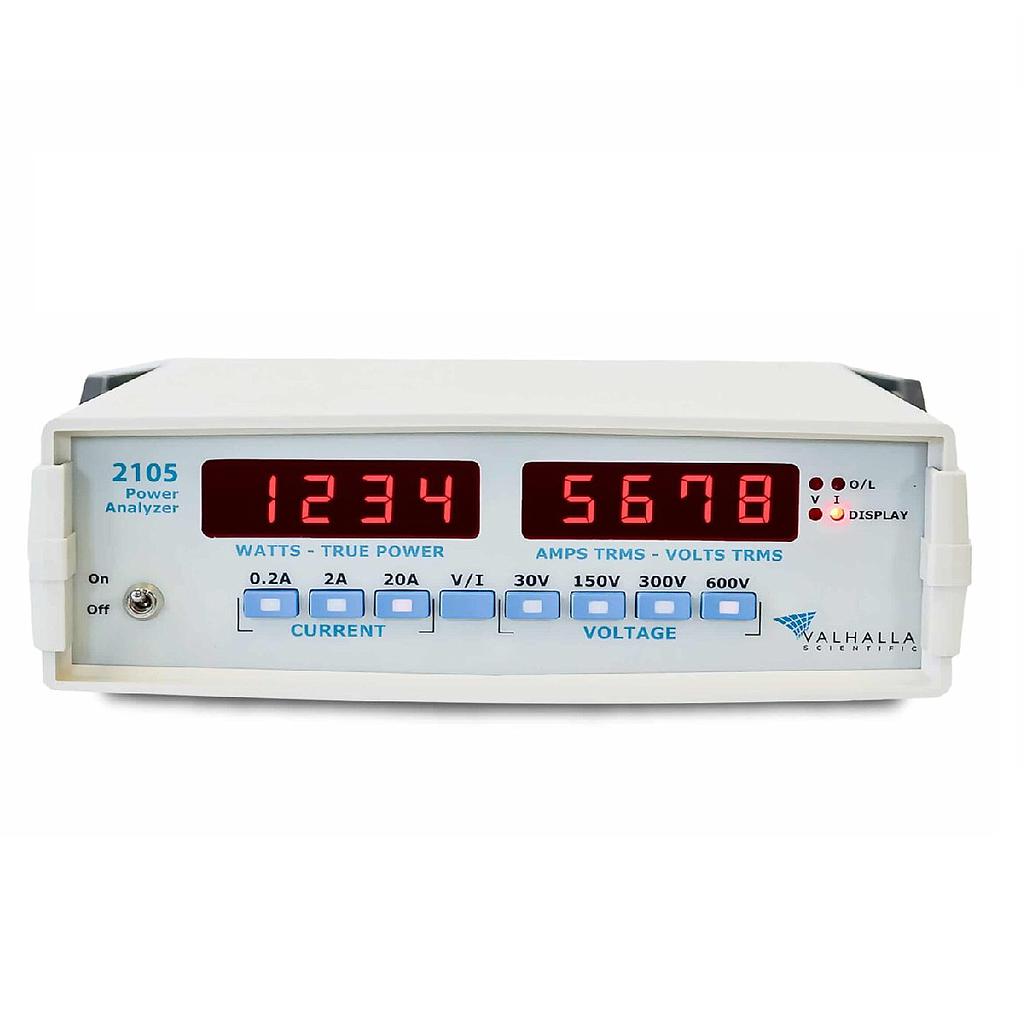

Valhalla Scientific 2105 功率分析仪 (600VDC)

Crest Factor Response: 50:1 for minimum RMS input, linearly decreasing to 2.5:1 for full-scale RMS input

Minimum Inputs: 5% of voltage and current ranges for specified accuracies

Maximum Voltage Input (without damage): 600VDC or RMS, ±1500VPEAK

Voltage Impedance: 600kΩ

Current Shunt Impedance: 0.01Ω

Max Common Mode: ±1500V peak, neutral to earth

Peak Indicators: Illuminate at 2.5 x full scale for voltage and current

Temperature Coefficient: ±0.025% of range per °C from 0°C-20°C and 30°C-50°C

Power Requirements: 105-125Vac or 210-250Vac, 50-400Hz; 25VA maximum

Operating Temperature Range: 0°C~50°C; -20°C~70°C Storage

Humidity: 70% RH max @ 40°C (non-condensing)

Dimensions: 25cmWx27cmDx8cmH(10”Wx10.5”Dx3”H)

Weight: 3.5lbs/1.7kg net
