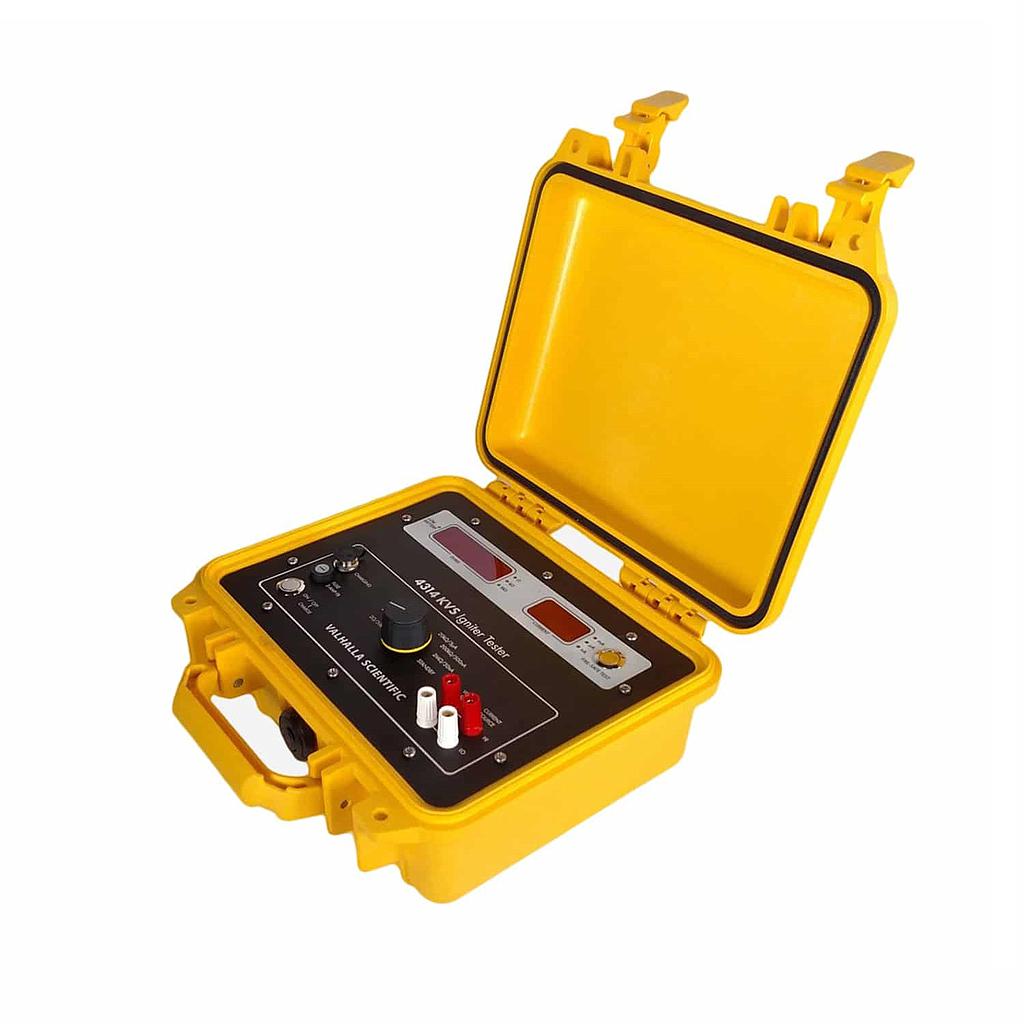

Valhalla Scientific 4314 KVS Digital Igniter Tester

General Specifications:

Display Type: 4 ½ digits LEDs (19999)

Overload Indication: O.L.

Conversion Rate: 3 readings per second

Terminal Configuration: 4-Wire Kelvin

Current Source Compl. Voltage: Clamped at 1.6V

Power: 4“D” Cell 1.2V recharg. NiMH Batteries 10000mAh

Battery Charger: 6VDC at 2.5A nominal


Temperature Coefficient: ±0.002% per °C(from 0°C~15°C and 35°C~50°C)

Operating Temp. Range: 0°C~50°C

Storage Temp. Range: -10°C~70°C

Physical Specifications

Width: 10.625”/27cm

Depth: 9.5”/24cm

Height: 4.875”/12.5cm

Weight: 5.5 lbs/2.5 kg net


-Replacement Battery Charger 115V/230Vac to 6VDC @ 2.5A

-4 Heavy Duty rechargeable NiMH Replacement Batteries 1.2V 10000mAH


-Continuous Isolated AC Power

-A 6-pin Mil-Spec circular connector (MS3112E10-6S) replaces the four-terminal banana jacks and the battery charger jack. Makes it physically impossible to simultaneously connect the AC/DC Charger while measuring with the test leads.
