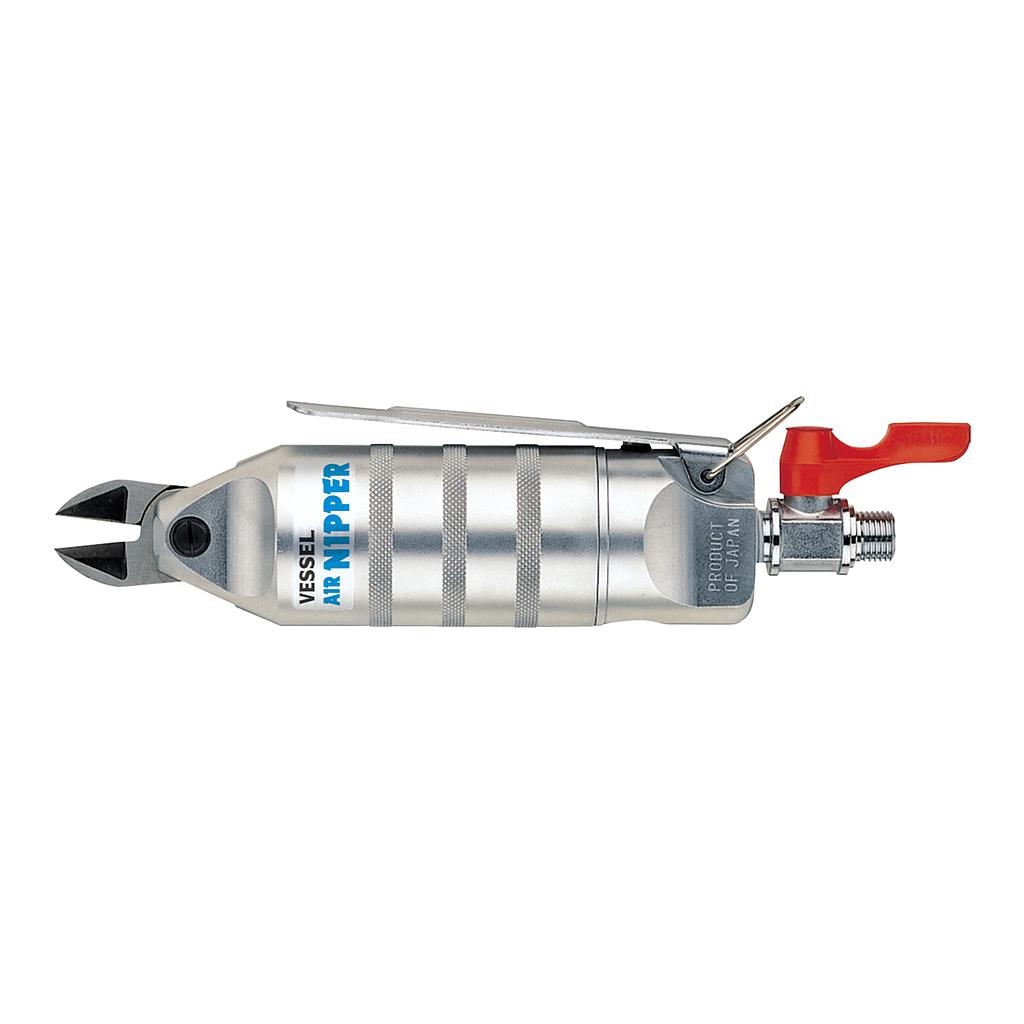

Hand-held gas cutting pliers GT-N3/5/7/10/12/20/30/50
VESSEL's made-to-order blades provide solutions for a virtually unlimited range of needs, leading to safer and more efficient working conditions, and less fatigue for the operator. N20, N30 and N50 have the air cock.
Khả năng cắt ∅(mm) | Model No. | Kích thước
(mm) | Lượng khí tiêu thụ
(cm3/str.)
| Áp suất
(Mpa) | Trọng lượng
(g) | Ren đầu cấp khí | Đầu nối ống | ||||||
Nhựa mềm | Nhựa cứng | Đồng
| Thép
| A | B | C | D
| ||||||
2.0 | - | 1.0 | 0.5 | GT-N3 | 112 | 23 | 7 | 14 | 45 | 0.4~0.5 | 95 | Rc 1/8 | Rc 1/4 |
2.0 | - | 1.0 | 0.5 | GT-N5 | 103 | 30 | 7 | 17 | 64 | 0.4~0.5 | 135 | Rc 1/8 | |
3.0 | 2.0 | 1.6 | 1.0 | GT-N7 | 123 | 34 | 9 | 17 | 116 | 0.4~0.5 | 180 | Rc 1/4 | |
4.0 | 2.6 | 1.8 | 1.2 | GT-N10 | 132 | 34 | 9 | 17 | 116 | 0.4~0.5 | 185 | Rc 1/4 | |
4.5 | 4.0 | 2.3 | 1.7 | GT-N12 | 142 | 36 | 12 | 20 | 116 | 0.5~0.6 | 210 | Rc 1/4 | |
7.0 | 5.0 | 2.6 | 2.0 | GT-N20 | 148 | 45 | 12 | 23 | 230 | 0.5~0.6 | 375 | Rc 1/4 | |
10.0 | 6.5 | 3.3 | 2.8 | GT-N30 | 185 | 56 | 17 | 30 | 584 | 0.5~0.6 | 625 | Rc 1/4 | |
- | - | 5.5 | 4.5 | GT-N50 | 237 | 75 | 25.2 | 43 | 1,170 | 0.5~0.6 | 1.220 | Rc 1/4 |
|
