Vessel SRC-01 表面电阻测试器

  • 制造商: Vessel
    Model: SRC-01
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Vessel

Model: SRC-01

Order No: 621603

Origin: Japan

Warranty: 12 months


Measurment Range: 10^3~10^12Ω (Ω/sq.)

Applied voltage: 10V (R<1.0×10^6Ω or Ω/sq.) , 100V (R≧1.0×10^6Ω or Ω/sq.)

Display: Triple-digit LCD ex.: 3.14 e10 → 3.14×10^10

L×W×D: 190(L)× 101.5 (W) × 54.7 (H) [mm]

Weight:  6.2kg (including the carrying case)

Operating temperature and humidity: 0℃~37℃, 10%~90%RH

Material: Body case: ABS resin

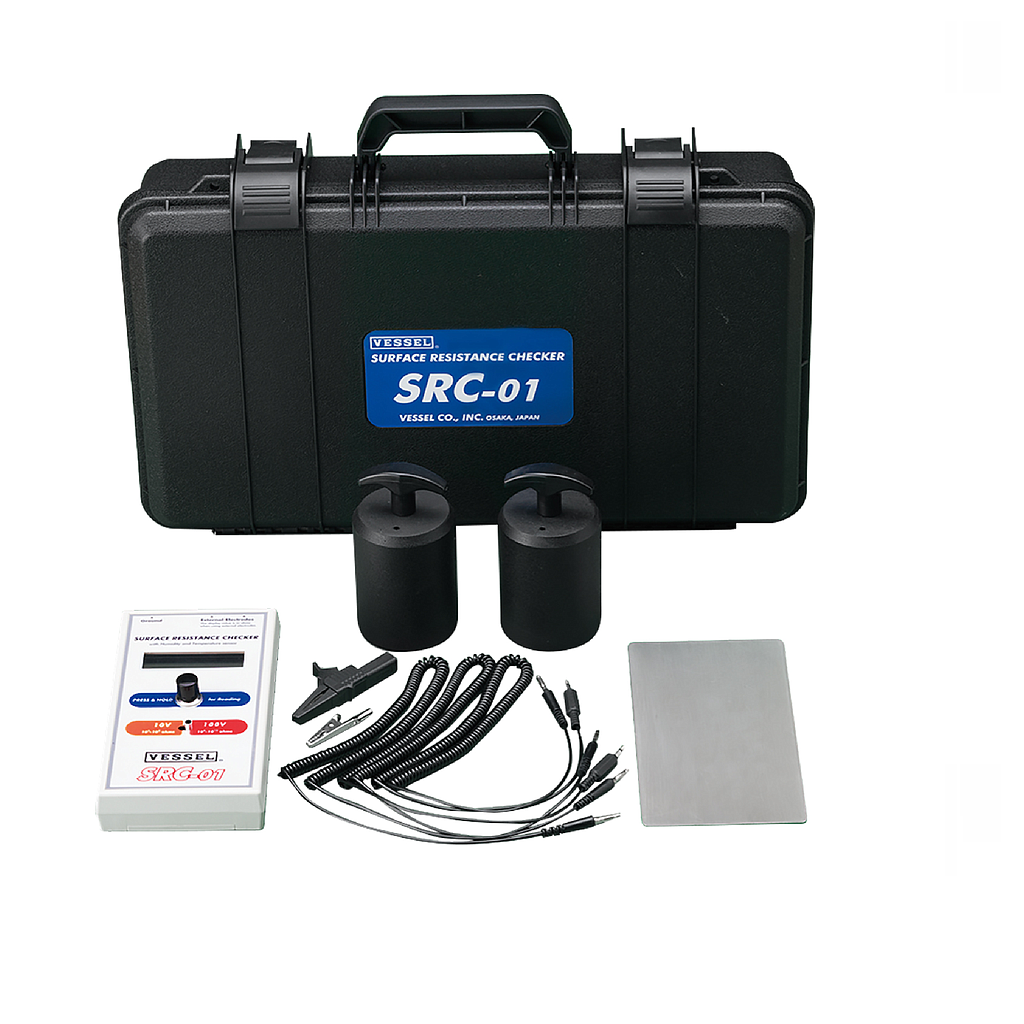

Accesories:

Probe (outer diameter: about Φ66 mm, about 2.3 kg): 2

Curled cord for a body earth (banana plugs at both ends): 1

Curled cord for measurement for the point-to-point resistance and

resistance to ground (banana plug/mono plug): 2

Crocodile clip: 1, Large crocodile clip: 1

Stainless plate (185 mm x 100 mm): 1

Stainless plate: 1

Carrying case: 1

9V battery (006P type: manganese dry battery): 1
