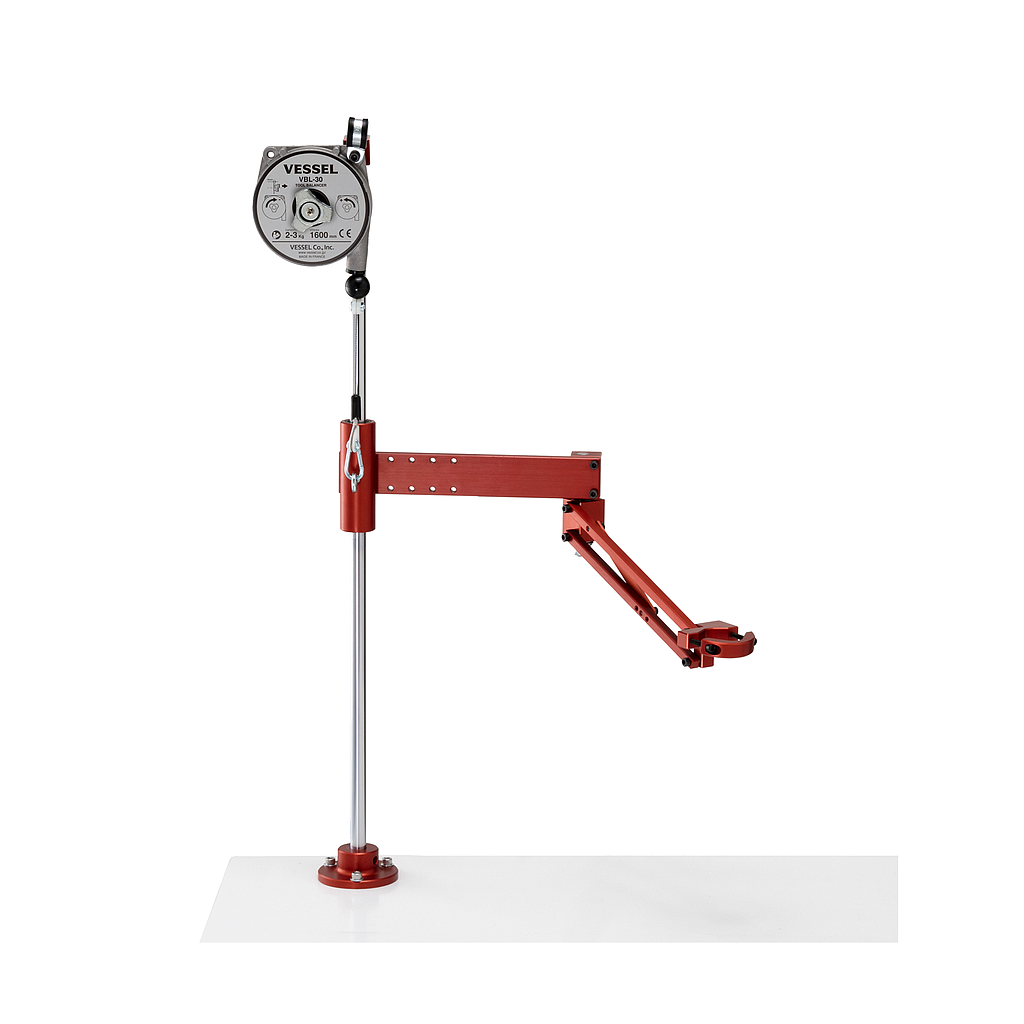

Vessel VAB-5 垂直臂

Maximum reaction force (N•m): 5

Maximum load (kg): 1.2

Mounted tool outer diameter (mm): 25~42

Height (mm): 705

Movable range (mm): Upto R450 (when the angle of the tip arm and the horizontal arm is 22.5°)

Weight (kg): 3.1 (including accessories)

Accessories: Tool balancer (VBL-30)

Operating temperature/humidity: 0~40℃ / 10~80%RH

Installation location: Indoor

Material: Steel (main pillar), Aluminum (holder/arm)

Applicable models

VAB-5: All VE-series models
