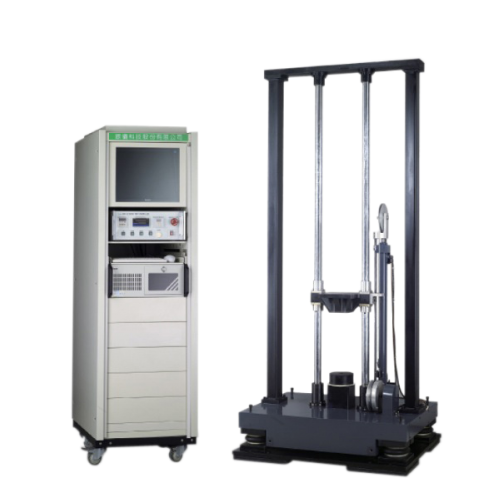

Vibsource SHOCK-5 Shock Tester (5kg)

Max.payload (kg): 5

Table size (mm): 200x200

Shock waveform: Half-sine

                             Final-peak saw-tooth

Peak acceleration (m/s²): 150~15000

                                         150~1000

Pulse duration (ms): 18~0.8

                                 18~6

Shock tester

- Dimension WxDxH (mm): 900x720x2300

- Weight (kg): 900

Hydraulic Pump

- Dimension WxDxH (mm): 350x300x690

- Weight (kg): 30

Power source: 220/380V 50/60Hz 1.5kW
