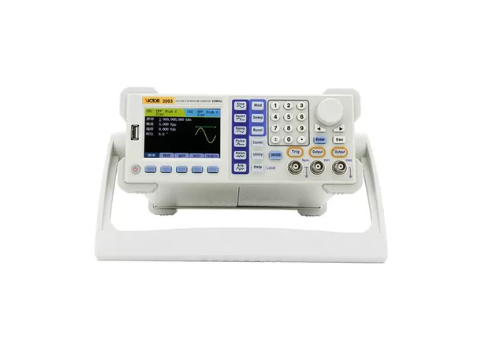

VICTOR 2004A 函数生成器 (40MHz)
制造商: VICTOR Model: 2004A - 联系
Sine: 1μHz ~ 40MHz
Square 1μHz ~ 15MHz
Triangle: 1μHz ~ 15MHz
Pulse: 100μHz ~ 6MHz
Arbitrary: 1μHz ~ 6MHz
General Technical Specifications
Supply voltage:220V±10%,45~65Hz,Or 110V±10%,45~65Hz
Power consumption:< 15W
Types:3.5-inch TFT LCD screen,Resolution480×320,16M color
Environment: Operation 10 ℃ ~ +40 ℃,Non-operation -10℃~+60℃
Humidity range: Within the range of 0 ~ 40 ℃,≤90% relative humidity
Interface:RS232,USB Device; USB Host(optional)
Display:3.5 inch TFT LCD screen, 480 x 320 resolution
Size:265 * 105 * 305 mm (width x height x deep)
Weight:2.6 kg
Accessories
Standard accessories:
1 piece of 30A51 three-wire power line;
1 piece of 33A52 BNC coaxial cable;
1 CD-ROM
1User guide.
Optional accessories:
BNC alligator clip line (33P01);
Cabinet installation suit (32P02);
RS232 serial line (32P04);
USB data line (32P05).
