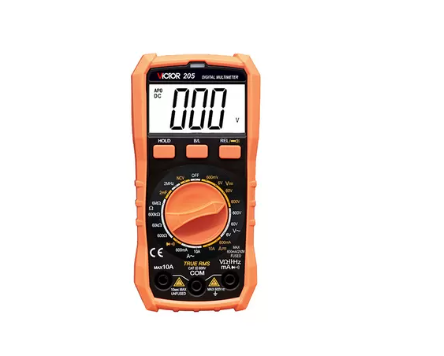

VICTOR 205 数字万用表 (600VAC/DC,10ADC/AC, True RMS)

DCV

600mV ±(0.5%+5)

6V/60V ±(0.5%+3)

600V ±(1.0%+10)

ACV

6V/60V ±(0.8%+5)

600V ±(1.2%+10)

DCA

600mA ±(1.2%+8)

10A ±(2.0%+5)

ACA

600mA ±(1.5%+15)

10A ±(3.0%+10)

Resistance

600Ω ±(0.8%+5)

60kΩ/600kΩ/6MΩ ±(0.8%+4)

60MΩ ±(1.2%+10)

Capacitance

10nF ±(5.0%+40)

100nF/1uF/10uF/100uF ±(3.5%+20)

2mF ±(5.0%+40)

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/2MHz ±(1.0%+10)

Diode test √

Continuity alarm √

Data hold √

Torch function √

Back light function √

NCV measurement √

Auto shutdown √

True RMS √

Operating method: Manual range

Low voltage display: symbol appears.

Display method: LCD display

Max. display: 5999 (3 5/6 digits) Auto polarity display

Sampling rate: About 3 times/s

Over range indication: The MSD displays“OL”

Dimension: 146mm*72mm*50mm

Weight: About 232g (include batteries)
