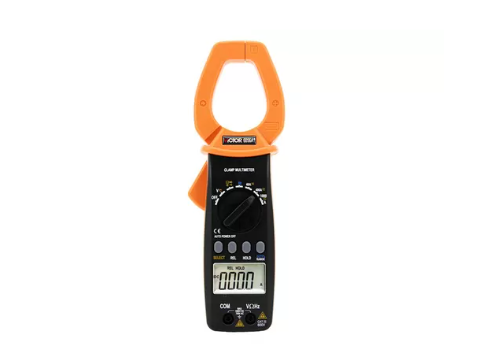

VICTOR 6056E 数字钳形万用表 (1000VDC, 750VAC, 1000ADC/ AC)

DC Voltage: 200mV/2V/20V/200V/1000V ±(0.5%+4)

AC Voltage: 200mV/2V/20V/200V/750V ±(0.8%+10)

DC Current: 40A/400A/1000A ±(2.5%+8)

AC Current: 40A/400A/1000A ±(2.5%+8)

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)

Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF ±(3.5%+8)

Frequency: 4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/30MHz ±(0.5%+10)

Special Function

Diode test

On-off alarm

Low battery indication

Data hold

Auto power off

Function protection

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC frequency response: (40-400)Hz

Operation way: Auto range

Max. Display: 3999

Clamp Size: 55mm

Battery: 9V (6F22)

General Characters

Product Net Weight Approx.388g(Including 9V battery)

Standard Accessories Test leads , battery ,instruction manual
