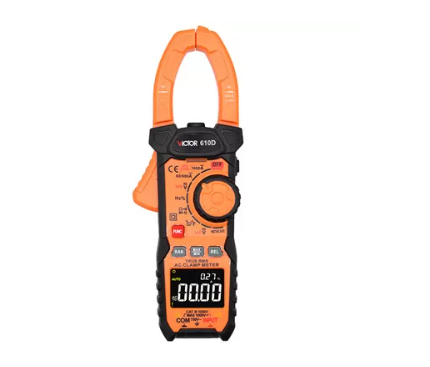

VICTOR 610D 数据钳形表 (1000VDC, 750VAC, 1000AAC)

DC voltage: 600mV/6V/60V/600V ±(0.5%+5)

                     1000V  ±(0.8%+5)

AC  voltage: 600mV/6V/60V/600V ±(0.8%+5)

                      750V ±(1.0%+5)

                      VFD(750V) ±(2.0%+5)

AC current: 60A/600A/1000A ±(2.5%+8)

Resistance: 600Ω/6kΩ/60kΩ/ 600kΩ/6MΩ/60MΩ ±(1.0%+5)

Capacitance: 10nF/100nF/1000nF/ 10uF/100uF/1000uF/10mF ±(4.0%+5)

                        100mF ±(5.0%+10)

Frequency/Duty Cycle: 10Hz/100Hz/1000Hz/ 10KHz/100KHz/1000KHz ±(1.0%+3)

                                        10MHz 1~99% ±(3.0%+3)

Temperature: -20°C ~0°C ±3°C

                         0°C~400°C ±1.0% or ±2°C

                        400°C~1000°C ±2%

                       -4°F~32°F ±6°F

                        32°F~752°F ±1.0% or±4°F

                        752°F~1832°F±2%

Features:

  Display: LCD display

  Max display: 6000 counts

  Diode √

  Data retention √

  NCV √

  Fire detection √

  Low voltage √

  Flashlight √

  True effective value √

  INRUSH √

  VFD √

  Max/MIn √

  LoZ √

  Working humidity: 0~40°C <80%

  Storage humidity: -10~50°C <80%RH

  Auto shut-down: About 15 minutes

  Over-range display: The highest digit shows OL

  Unit symbol √

  Open jaws: 40mm

  Input resistance: 10MΩ

  Sampling rate: 3 times/sec

  Power supply: Three AAA batteries
