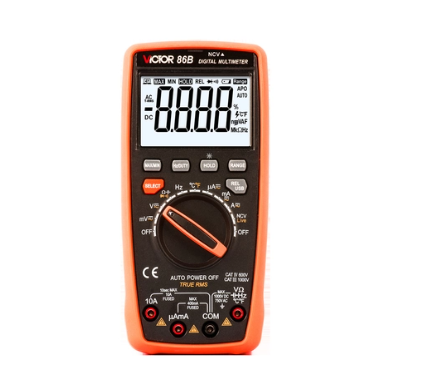

VICTOR 86B 数字万用表 (1000VDC, 750VAC, 10ADC/VC, True RMS)

DC Voltage:  400mV/4V/40V/400V/1000V ±(0.5%+4)

DC Millivolts: 400mV/40mV ±(0.5%+5)

AC Voltage:  4V/40V/400V/750V ±(0.5%+5)

AC Millivolts:  400mV/40mV ±(1.0%+6)

DC Current: 400uA/4000uA /40mA/400mA/4A/10A ±(1.2%+10)

AC Current: 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)

Capacitance: 40nF/400nF/4uF/40uF/400uF/4mF/40mF ±(3.5%+8)

Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+15)

Temperature/Celsius: (-20 ~ 1000) ℃ /(0~1832) ℉ ±(1.5%+15)

Special Function

Diode test

Transistor test

Continuity buzzer

Low battery indication

Data hold

Auto power off

Bar graph display: no

USB interface jack

Max./ Min

Function protection

Shockproof protection

NCV/LIVE: 0.1%~99.9%

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC Frequency response: (40-400)Hz

Operation way: Manual/Auto range

Max. display: 3999

LCD Size: 70×50mm

Power: 1.5*4

General Characters

Product Color Case: black; Holster color: orange

Product Net Weight Approx.423g (including battery)

Standard Accessories Test leads; battery; instruction manual TP01 temperature probe; Holster,USB Cable(TYPE-C,CD software
