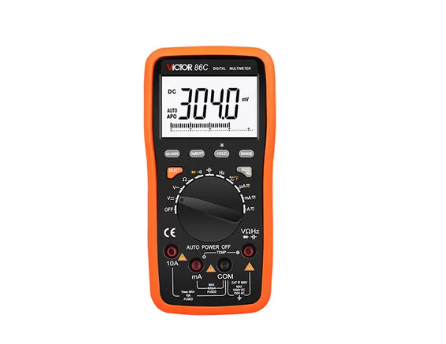

VICTOR 86C 数字万用表 (1000VDC, 750VAC, 10ADC/VC, True RMS)

DC Voltage: 400mV/4V/40V/400V/1000V ±(0.5%+4)

AC Voltage: 400mV/4V/40V/400V/750V ±(0.8%+10)

DC Current: 400uA/4000uA /40mA/400mA/4A/10A ±(1.0%+10)

AC Current: 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)

Capacitance: 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)

Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+4)

Temperature:

(-20 ~ 1000)℃ ±(1.0%+5)

Celsius (0~1832)℉ ±(1.5%+15)

Special Function

Diode test √

Transistor test √

Continuity buzzer √

Low battery indication √

Data hold √

Auto power off √

Bar graph display 41segment(30time/s)

RS232 interface jack √

Max./ Min √

Function protection √

Shockproof protection √

Frequency /duty cycle: 0.1%~99.9%

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC Frequency response: (40-400)Hz

Operation way: Auto range

Max. display: 3999

LCD Size: 70×50mm

Power: 3V (1.5V×2)

General Characters

Product Net Weight Approx.350g (including battery)

Product dimension 191×93×48mm

Standard Accessories Test leads; battery; instruction manual TP01 temperature probe;(86C Transistor test accessory)
