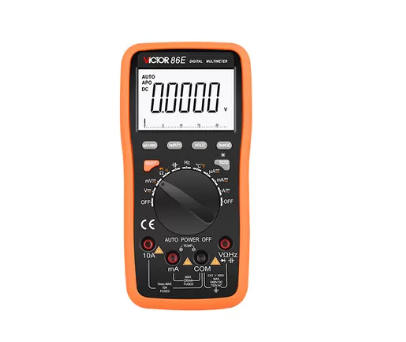

VICTOR 86E 数字万用表 (1000VDC, 750VAC, 10ADC/AC)

DC Voltage

220mV/2.2V/22V/220V ±(0.05%+8d)

1000V ±(0.1%+10d)

AC Voltage

220mV ±(0.5%+25d)

2.2V/22V/220V ±(0.5%+5d)

750V ±(1.0%+25d)

DC Current

220uA/2200uA /22mA ±(0.5%+4d)

220mA ±(0.8%+6d)

10A ±(2.0%+15d)

AC Current

220uA/2200uA /22mA ±(0.8%+15d)

220mA ±(1.5%+25d)

10A ±(2.5%+35d)

Resistance

220Ω ±(0.5%+30d)

2.2kΩ/22kΩ/220kΩ/2.2MΩ ±(0.4%+5d)

22MΩ ±(0.5%+25d)

220MΩ ±(5%+10d)

Capacitance

22nF/220nF/2.2uF/22uF/220uF ±(2.5%+30d)

2.2mF/22mF ±(5.0%+50d)

220mF ±(7.0%+50d)

Frequency

22Hz/220Hz/22kHz/220kHz/2.2MHz/22MHz ±(0.1%+4d)

50MHz ±(0.2%+4d)

Celsius

-4~752℉ ±(1.2%+6℉)

≥752~1832℉ ±(1.9%+25℉)

Temperature

-20 ~400℃ ±(1.0%+5℃)

≥400~1000℃ ±(1.5%+15℃)

Special Function

Diode test √

Transistor test √

Continuity buzzer √

Low battery indication √

Data hold √

Auto power off √

Bar graph display: 46segment(20times/s)

RS232 interface jack √

Function protection √

Shockproof protection √

Frequency /duty cycle: 5.0%~94.9%

Input impedance: 10MΩ

Sampling rate: 2 times/s

AC Frequency response: (40~400Hz)

Operation way: Manual/Auto range

Max. Display: 22000

Power: 9V

General Characters

Product Net Weight: Approx.410g (including battery)

Product dimension: 185×91×49mm

Standard Accessories: Test leads; battery; instruction manual TP01 temperature probe, Holster
