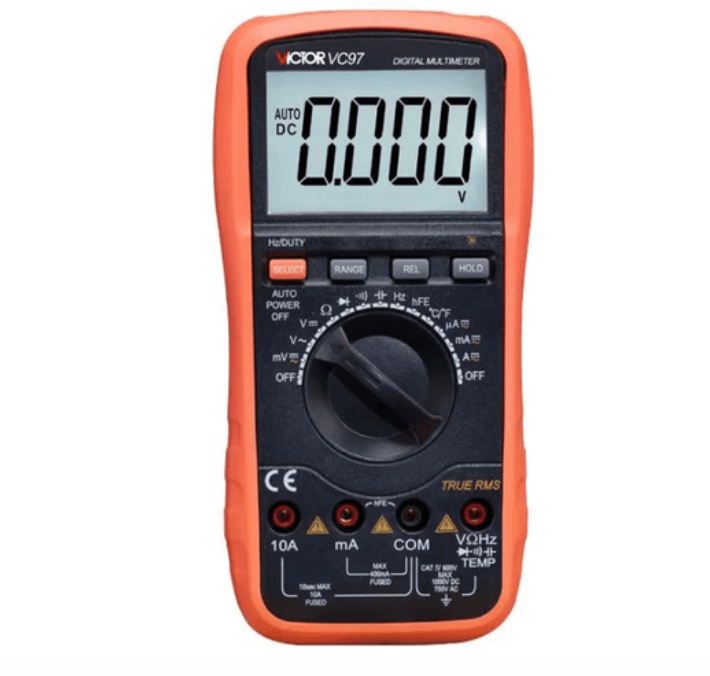

VICTOR VC97 数字万用表 (1000VDC, 750VAC, 10ADC/AC, True RMS)

Specification

DC Voltage: 400mV/4V/40V/400V/1000V ±(0.5%+4)

AC Voltage: 4V/40V/400V/750V±(0.8%+10)

DC Current: 400uA/4000uA/40mA/400mA/10A±(1%+10)

AC Current: 400uA/4000uA/40mA/400mA/10A±(1.5%+10)

Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8%+4)

Capacitance:

10nF ±(5%+20)

100nF/1uF/10uF/100uF±(3.5%+8)

1mF/10mF/100mF±(5.0%+10)

Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz ±(0.5%+10)

Temperature: (-20~1000)℃ /(-4-1832)℉ ±(1.0%+5)

Features

Diode √

Transistor √

Continuity buzzer √

Low battery indication √

Backlight √

Data Hold √

True RMS √

Auto power off √

Analog bar graph √

Shockproof protection √

Duty Cycle: 1%~99.%

Input impedance: 10МΩ

Sampling rate: 3 times/s

AC Frequency response: 40~400Hz

Operation way: Auto Range/Manual Range

Max. Display: 3999

LCD size: 70×50mm
