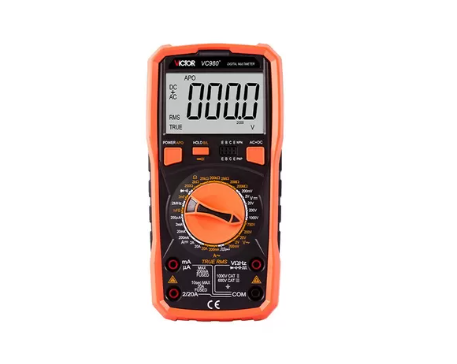

VICTOR VC980+ 数据万用表 (1000VDC, 750VAC, 20ADC/AC, True RMS)

DC Voltage

200mV/2V/20V/200V ±(0.05%+5)

1000V ±(0.1%+5)

AC Voltage

200mV ±(1.0%+25)

2V/20V/200V ±(0.8%+25)

750V ±(1.2%+50)

DC Current

200uA/2000uA/2mA /20mA ±(0.5%+4)

200mA ±(0.8%+6)

20A ±(2.0%+15)

AC Current

200mA ±(1.5%+15)

20A ±(2.5%+35)


200Ω ±(0.3%+10)

2kΩ/20kΩ/200kΩ/ ±(0.3%+5)

2MΩ ±(1.2%+25)

20MΩ/200MΩ ±(5.0%+45)


2nF/200nF/2uF/20uF ±(4.0%+50)

200uF/2mF ±(4.0%+50)

Frequency: 200Hz/2kHz/20kHz/200kHz/2MHz ±(0.1%+3)

Special Function


Continuity Buzzer

Low battery indication

Hold Data Hold

Auto power off


Function protection

200mA protection

Input impedance: 10МΩ

Sampling rate: 3 times/s

AC frequency response: 40Hz-20kHz

Operation way: Manual range

Max. Display: 19999

Battery: 1.5V AAA LR03 Battery

General Characters

Product Net Weight: Approx. 422g

Product dimension: 186*92*52mm

Standard Accessories: Test leads , battery ,instruction manual
