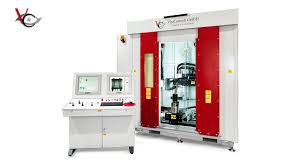

VisiConsult XRH222 X射线测试柜

Manufacturer: VisiConsult

Model: XRH222

Origin: Germany

Warranty: 12 months


Max. part size (mm - Ø x height): 650 x 900

Max. part weight (kg): 120(60)

System size (mm L x W x H): 2900 x 2100 x 2750

System weight (kg): 6000

Console size (mm LxWxH): 1200 x 950 x 1600

Console wight (kg): 175

Energy (kV): 160, 225, 320, 450

Horizontal motion TX (mm): 900

External Leading TX2 (mm): 400

Magniication TY (mm): 450

Focus Detector Distance FDD (mm): 1150

Focus Object Distance FOD (mm): 384 - 830

Vertical motion TZ (mm): 920

Manipulator tilt RX (deg.): +/- 30°

Part rotation RZ (deg.): 360° multiturn
