Vitrox TR2000i 托盘验收测试

Manufacturer: Vitrox

Model: TR2000i

Warranty: 12 months

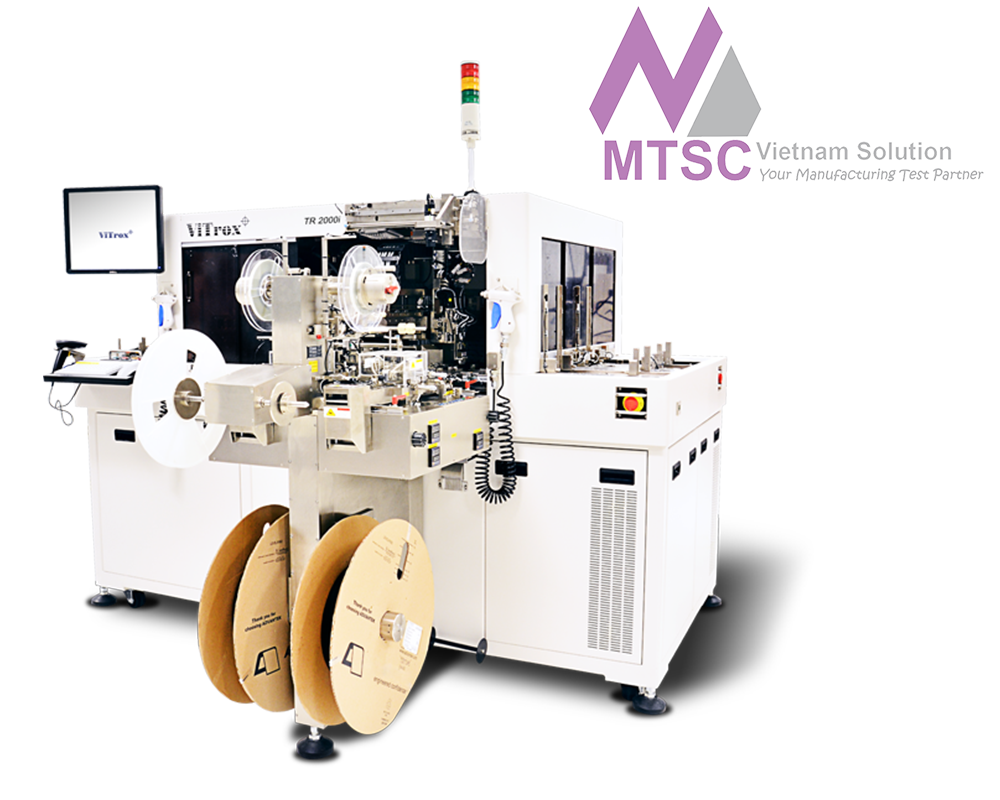

TR2000i : Tray-Based Vision Solutions

The TR2000i comes with built in taping module with dual taper for fast changeover and tri-nozzle for faster unit pickup which translates to higher throughput of up to 18K (tray to tape)

Package Inspected: BGA, QFP, QFN, CSP, TSSOP, MSOP, SOP

Package Size: 2mm x 2mm to 42mm x 42mm

Tape Range: 8mm to 56mm

Handling Mechanism: Tray to Tape (Dual Taper)

UPH: Up to 18K

Taping Module Conversion Time: < 20 mins

De-Taping: Built-in De-Taping

Vision Inspection: 3D vision inspection, Leaded Packages Inspection, Ball Packages Inspection, Leadless Packages Inspection, Top 3D POP Inspection, 2D Barcode Inspection, Mark Inspection, Package Vision Inspection, Passive Component Inspection, Top Color Inspection

Machine Dimensions (mm): 1980(H) x 2300(W) x 2061(L)
