Vitrox V510i G2: Advanced Optical Inspection (AOI)

  • 制造商: Vitrox
    Model: V510i G2
    来源: Malaysia
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Vitrox

Model: V510i G2

Warranty: 12 months

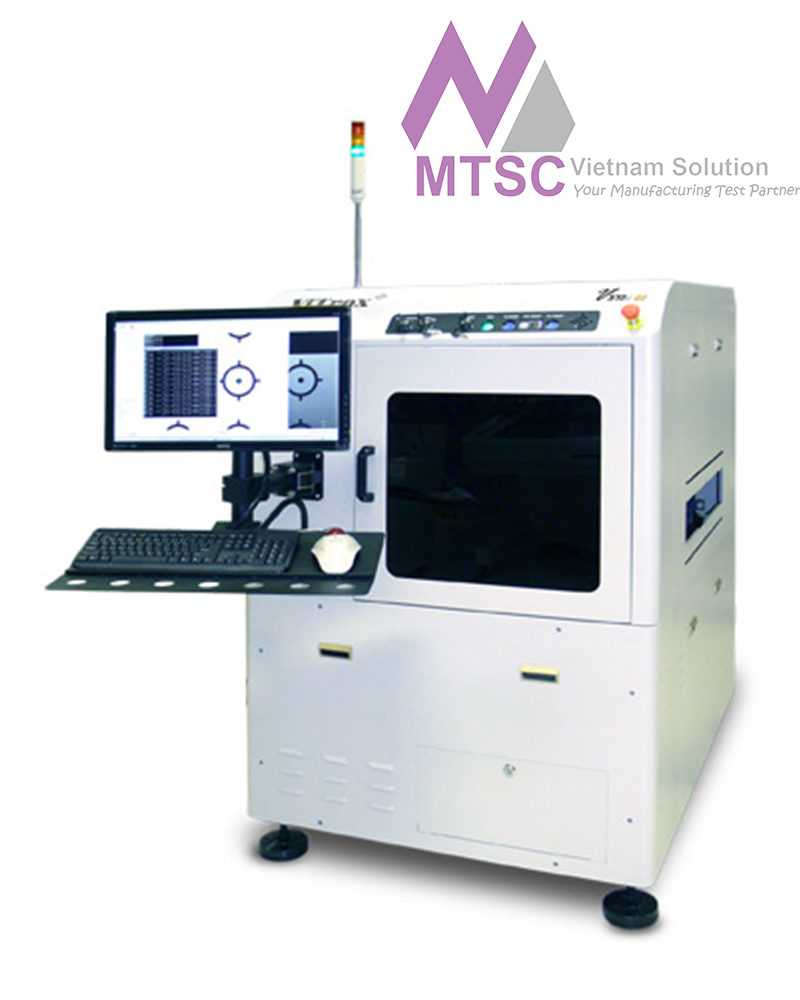

V510i G2 : Advanced Optical Inspection (AOI)

ViTrox has introduced the G2 Series of its V510i Advanced Optical Inspection (AOI) soluton. The V510i G2 Series offers powerful technologies and high throughput productivity for SMT production line.

Board Dimensions

Maximum board size (Single Lane): 510 mm by 510 mm (20 inch by 20 inch)

Minimum board size: 50 mm by 50 mm (2 inch by 2 inch)

Maximum board thickness: 4mm (0.16 inch)

Minimum board thickness: 0.5 mm (0.02 inch)

Board weight: Up to 3 kg (6.6 lb)

Maximum inspected area: 503 mm by 510 mm (19.8 inch by 20 inch)


Top side of board: 41 mm (1.61 inch)

Bottom side of board: 50 mm (1.97 inch)

Minimum edge clearance: 3.5 mm (0.14 inch)

Conveyor height range: 870 mm to 965 mm (34 inch to 37.9 inch)

System Dimensions

Footprint: W: 1000 mm (3.3 ft) x D: 1254 mm (4.1 ft) x H: 2010 mm (6.6 ft)

Weight: ~ 750 kgs


Post-reflow Inspection: Coverage: Missing, offset, skewed, polarity, billboard, tombstone, lifted/bent leads, excess/insufficient solder, bridging, wrong part, and traceability

Pre-reflow Inspection: Coverage: Missing, offset, skewed, polarity, billboard, wrong part inspection, extra part inspection, and traceability connector, OCV for tall component

Inspection Speed:

Post reflow: 8.5 in^2/sec (55.0 cm^2/sec)

Pre-reflow: 10.0 in^2/sec (65.0 cm^2/sec)

Board level and component level traceability: External barcode reader configured; Camera-read barcodes; OCR capability with batch code logging

Hardware Systems

Camera System:

4 mega pixel digital camera; 19 um per pixel resolution; (scalable from 21 to 8 um for 01005 inspection)

Field of view: 38.5 mm x 38.5 mm

Lighting System: Multiple color, multiple angle, multiple segment LED lighting head, auto calibration


Field Upgradeable
- Motorized Z Height

- Telecentric Lens 11/20um per pixel

- Conformal Coating Lighting

Non-Field Upgradeable: Flexi Dual Lane (Max. equally width: 235 mm by 510 mm), Lane 1 (Minimum: 50 mm, Maximum: 420 mm), Lane 2 ( Minimum: 50 mm, Maximum: 420 mm)

Chi tiết

World leading innovation machine vision inspection providers building

Since its inception in 2000, ViTrox designs and manufactures innovative, leading-edge and cost-effective automated vision inspection equipment and system-on-chip embedded electronics devices for the semiconductor and electronics packaging industries. ViTrox's core products are its Machine Vision System (MVS), Automated Board Inspection (ABI) and Electronics Communication System (ECS).

ViTrox serves customers from semiconductor Outsourced Assembly and Test (OSAT) companies, printed circuit board manufacturers, electronics assemblies companies, Original Equipment Manufacturers (OEM), Original Design Manufacturers (ODM), Electronics Manufacturing Services (EMS) providers and Contract Manufacturers (CM) around the world.

On 24th June 2004, ViTrox was converted into a public limited company and adopted the name of ViTrox Corporation Berhad. Currently, ViTrox is listed under the Main Board of Bursa Malaysia with stock code of 0097.

ViTrox received numerous national and international recognitions and awards for its outstanding performance in product development and corporate performance, as well as human resource development.

At present, ViTrox is well recognized as one of the world-leading automated machine vision inspection solution providers with an extensive customer base in Malaysia, Singapore, Indonesia, Thailand, Vietnam, Philippines, Taiwan, China, Japan, Korea, India, Australia, Europe, Brazil, Mexico, the USA and more
