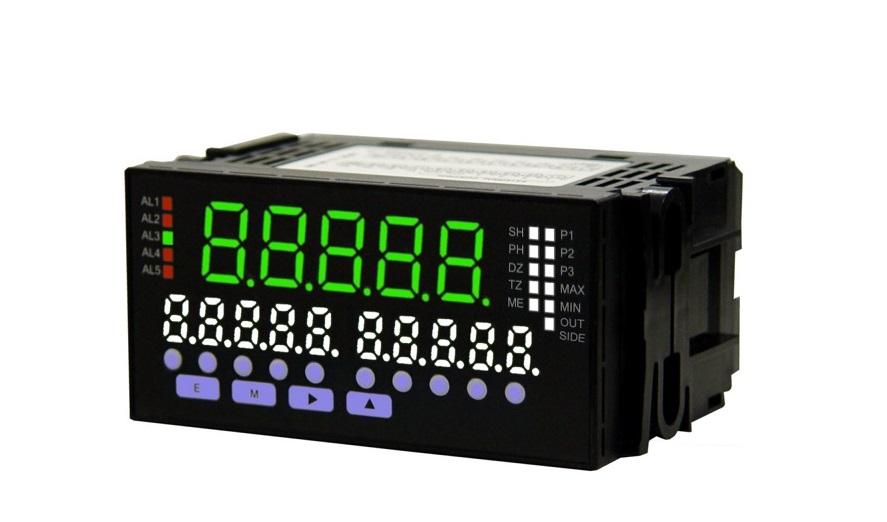

Watanabe WPM-1-12 直流电压表/电流表 (多屏显示48×96mm)

- Input: DC voltage/DC current

- Output:

・Analog output×1

    DC voltage/DC current

・Alarm output×5

    Relay output・・・AC125V 0.3A/DC30V 1A

    Photo coupler・・・DC30V 50mA

- Power: AC100~240V

- Permissible tolerance: ±0.1%fs+1digit

- Operating temperature/humidity: -5~+50℃ 35~85%RH

- Dielectric strength: AC2000V

- Display digit: 5-digit

- Panel size: 48(H)×96(W)mm

- External Dimensions: 48(H)×96(W)×97.5(D)mm

- Weight: Approx. 250g

- Standards & Approvals: EN61326-1; EN61010-1
