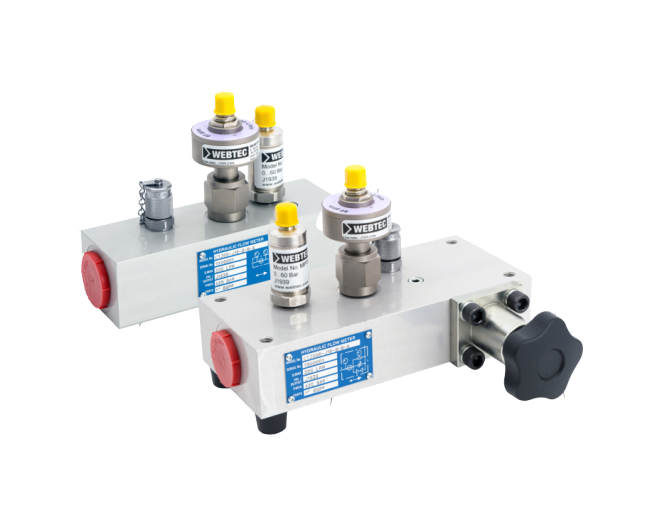

Webtec CT300R-J19-B-B-6 涡轮流量计 (8-300 lpm; 420 bar)
制造商: Webtec Model: CT300R-J19-B-B-6 来源: United Kingdom 保障: 12 Month - 报价要求
- 联系
Main ports: 1” BSPP
Top ports: 1/4” BSPP
Flow range: 8 - 300 lpm
Max. pressure: 420 bar
Ambient temperature: 5 to 40 °C (41 - 104 °F)
Fluid type: Mineral oil to ISO 11158 category HM (for other fluid types please contact Sales).
Fluid temperature: 5 to 90 °C (41 - 194 °F) continuous use.
Accuracy:
15 to 100% of range - 1% of indicated reading
Below 15% fxed accuracy of 1% of 15% of full scale
Repeatability: Better than ± 0.2%
Response Time: 50ms + 1 period (turbine frequency)
Degree of protection*: IP66 (EN60529) *With cable connected
Bus speed: 250KHz
Electrical specifcation
Supply voltage (VS): 8 - 40 VDC
Current: 5mA @32v, 20mA @8v
Output: SAE J1939 compatible (not fully compliant)
Calibration: Calibrations are conducted at a mean viscosity of 21cSt using ISO32 hydraulic mineral oil to ISO11158 category HM. Calibration certifcates are available on request - this is a chargeable option.
Construction material:
Flow body:
600/800/1500 High tensile Aluminium 2014A T6
15/60/150/300/400 High tensile Aluminium 2011 T6
Internal parts: Aluminium, Steel, Stainless Steel.
Transducer: Body and nut -steel 212A42 electroless nickel plated, Housing and Lid - Aluminium 2011 T3
Seals: FKM seals as standard EPDM are available (For flow meters without loading valve - CT only) - please consult sales offce.
