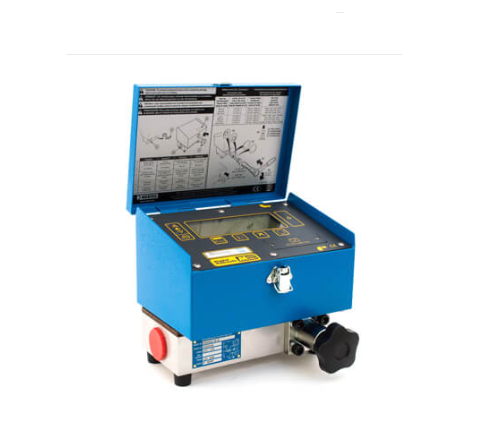

Webtec DHM804-S-7 液压多功能测试仪 (5-210 US gpm; 0-7000 psi)

Flow Range: 5-210 US gpm

Pressure Range: 0-7000 psi

Fluid Temperature Range: 32 - 220 °F

Inlet/Outlet Ports: 1-7/8” -12UN #24 SAE ORB

Functional specification

Ambient temperature: 5 to 40°C (41-104°F)

Fluid type: Hydraulic oil

Accuracy: Flow: ± 1% of indicated reading (15 to 100% of range)

Pressure: ± 0.5% full scale

Temperature: ± 1°C (± 2°F)

Power: Below 100KW (134HP) ± 3KW (± 4HP)

Above 100KW (134HP) ± 5KW (± 6.7HP)

Volumetric efficiency: ± 1%

Data Recording: up to 12 sets of data points can be saved to internal memory

Peak Pressure: is sampled 1000 times/second.

Battery Life: approximately 15hours continuous with high capacity Alkaline unit.

IP54 Internal Protection of electrical circuits.

Dimensions in mm (inches): 245 (9.65”) wide, 225 (8.86”) deep, 225 (8.86”) high

Weight: Unpacked 10Kg (22lbs)

Construction materials

Case: Powder coat painted mild steel

Flow block: High tensile aluminium

Seals: Viton as standard - EP seals on request
