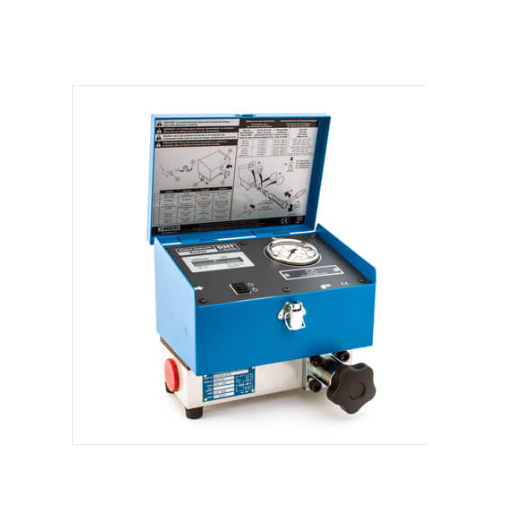

Webtec DHT401-B-6 数字液压多功能测试仪 (10-400LPM; 0-420 bar)

Flow Range: 10 - 400 LPM

Pressure Range: 0 - 420 bar

Fluid Temperature Range: 0 - 120°C

Inlet/Outlet Ports: 1” BSPP

Functional specification

Ambient temperature: 5 to 40°C (41-104°F)

Fluid type: Hydraulic oil

Accuracy: Flow: ± 1% full scale

Pressure: ± 1.6% full scale

Temperature: ± 1°C (± 2°F)

Dimensions in mm (inches): 240 (9.45”) wide, 200 (7.87”) deep, 200 (7.87”) high

Weight: Unpacked 6.5Kg (14lbs)

Construction materials

Case: Painted mild steel

Flow block: High tensile aluminium

Seals: Viton as standard - EP seals on request
