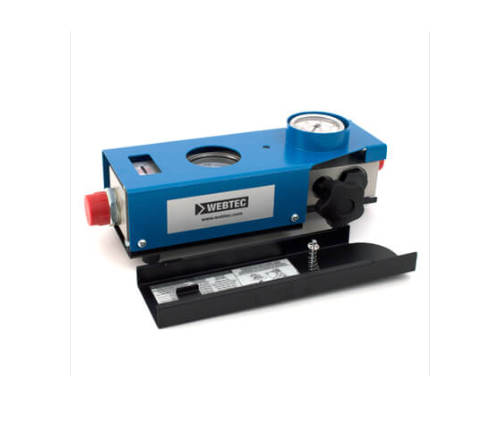

Webtec RFIK200-B-6 液压测试仪 (10-200lpm; 420 Bar)

Calibrated Flow Range: 10-200lpm; 4-54US gpm

Inlet ftting: 1” BSPP

Outlet ftitng: 1” BSPP

Functional specifcation

Ambient temperature: -10 to 50 °C (14 - 122 °F)

Fluid type: Hydraulic oils

Fluid temperature: 20 to 80 °C (68 - 176 °F) continuous use. Intermittently (< 10 minutes) up to 110 °C (230 °F).

Maximum pressure: 420 Bar (6000 psi)

Displays: Pressure and flow 2.5” (63mm) dials

Temperature 2” (50mm) long scale 20 to120 °C (68 - 248 °F)

Accuracy: Flow: ± 4% of full scale

Pressure: ± 1.6% of full scale

Temperature: ± 2.5 °C (± 5 °F)

Dimensions: 310 x 105 x 120 mm (12-1/4” x 4-1/8” x 4-7/8”)

Weight: 6.6 kg (14.5 lbs)

Construction material

Case: Painted steel - removable lid

RFI body: Aluminium 2011T6

Load valve body: Aluminium 2011T6

Internal components: Stainless steel, brass

Seals: Viton
