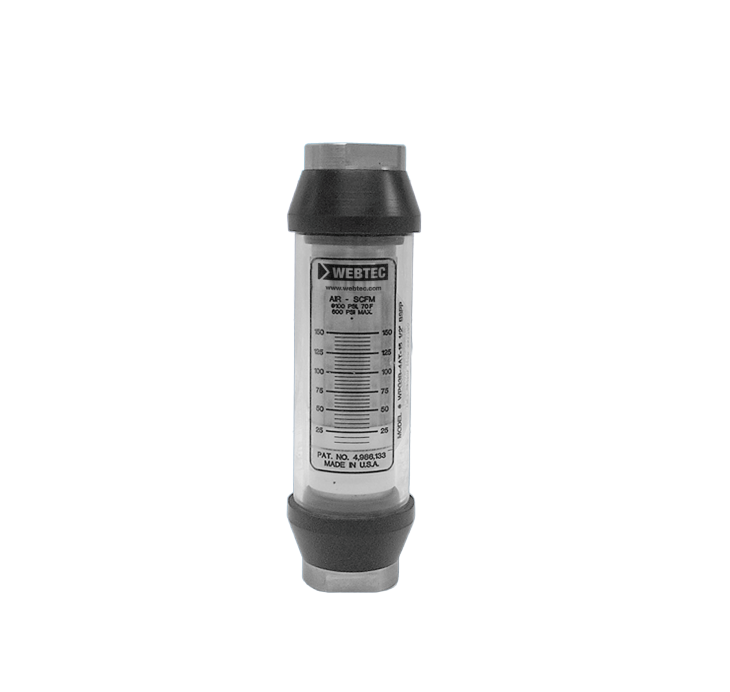

Webtec WPG 气压监控传感器 (1300 SCFM)

  • 制造商: Webtec
    Model: WPG
    来源: United Kingdom
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Measuring accuracy:

 ± 2.5% of full-scale in the centre third of the measuring range

 ± 4% of full-scale in upper & lower thirds

Repeatability: ± 1% of full scale

Flow measuring range: 1.5 - 1300 SCFM (Standard cubic feet per minute)

Max. operating pressure: Aluminium & brass 40 bar (580 psi), stainless steel 70 bar (1,000 psi)

Max. operating temperature: 115° C (240° F)

Pressure differential: See graphs below

Calibration: Air @ 21°C, 1.0 sg and 6.9 bar (100 psi)

Flow calibration certifcates are available on request, this is a chargeable option.

Note: Must be requested at time of order & cannot be retrospectively requested
