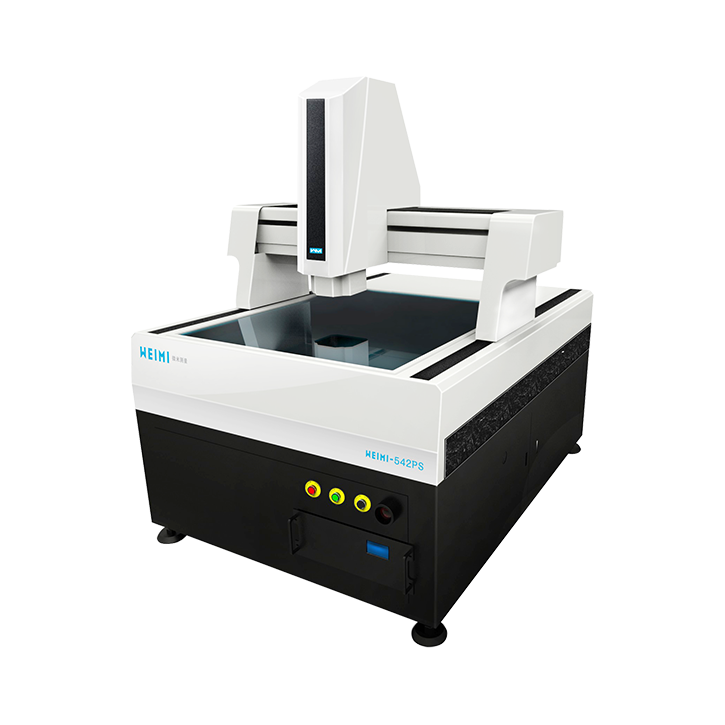

Weimi WEIMI1612PS 龙门式大行程二次成像测试仪 (1600/1200/200 mm, 2000W)

Dimension(L*W*H): 2350*1100*1920 mm

Measuring range (Y/X/Z): 1600/1200/200 mm

Workbench

Working desk: 1800*1460 mm

Glass surface: 1760*1360 mm

Load-bearing: 50 kg

Total weight: 4000 kg

Image measurement and measurement system

CCD: Weimi20 1/3 inch color high resolution camera 520TV line (optional)

Zoom lens: 0.7-4.5X

Video zoom: 30-225X

Object field of view: 10.6-1.6 mm

Working distance: 90 mm

Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200 Z, Accuracy ≤4+L/50 ("L" refers to the measured object l.ength in mm)

Repeatability: ≤0.003mm

Positioning accuracy: 0.001mm

Illumination: LED surface light, brightness adjustable

Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)

Power supply: 220V±10% (AC) 50Hz

Machine credit: 2000W
