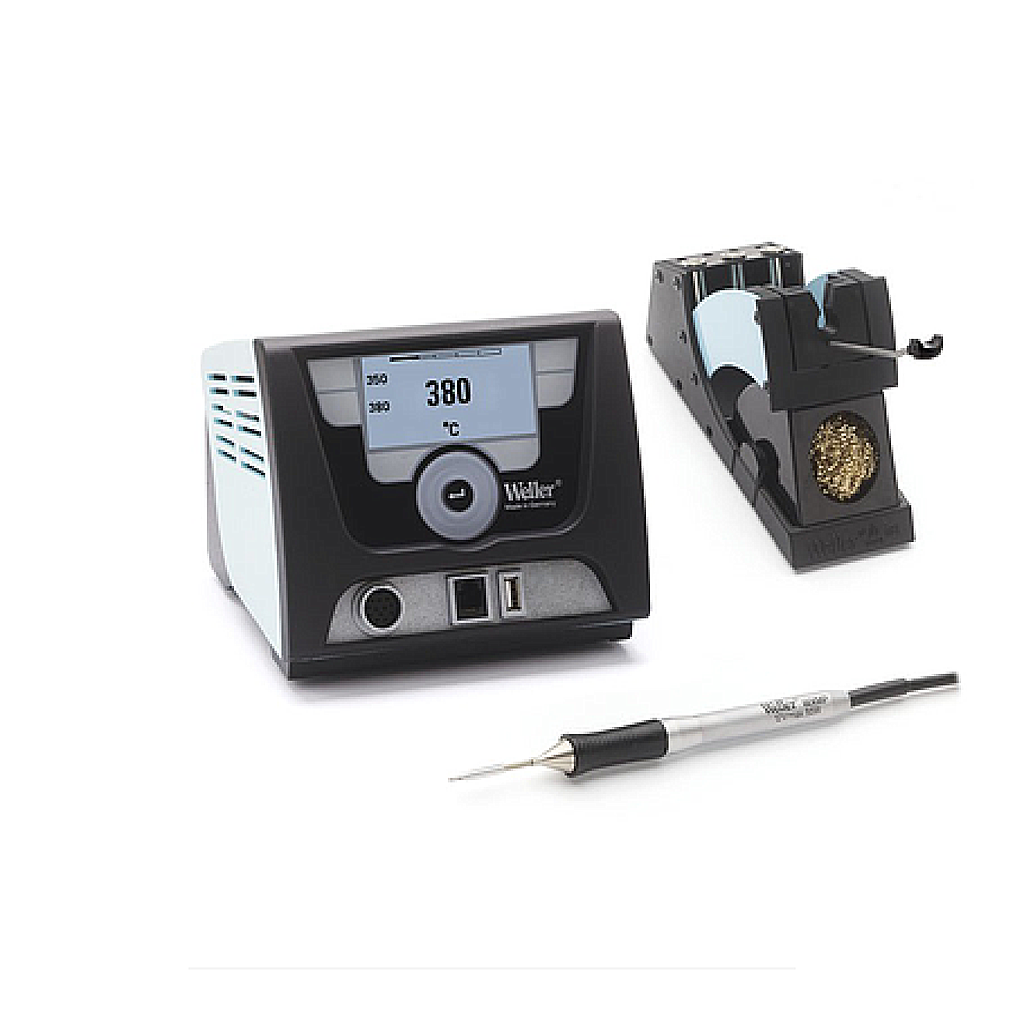

Weller WX 1011 焊接站 (T0053419699N, 1 频道, 55W )
制造商: WELLER Model: WX1011 - 联系
WX 1011 Set Power unit with 1 channel |
|
This station is ESD safe. | |
Dimensions L x W x H: | 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch) |
Weight: | approx. 3,2 kg |
Channels: | 1 |
Power supply: | 230 V, 50 Hz |
Power consumption: | 200 W |
Protection class: | I |
Temperature range: | Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools |
Temperature accuracy: | ± 9°C (± 17°F) |
Temperature stability: | ± 2°C (± 4°F) |
Equipotential bonding: | Via 3,5 mm pawl socket on back of device |
Material touch panel: | Made of antistatic coated material |
Dimensions touch panel: | 74 x 38 mm |
Resolution: | 255 x 127 (128) dots |
Display backlighting: | 4 LEDs |
Equipotentional bonding: |
The 3,5 mm switch offers four different options: |
USB interface: | USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
WXMP Set Active Tip Heating Technology |
|
Voltage (heater): | 12 V |
Heating output: | 40 W (55 W with RT 11) |
Heat-up time: | approx. 3 s 50°C - 350°C (120°F - 660°F) |
Temperature range: | 100°C - 450°C (212°F - 850°F) |
Tip type: | RT |
Connectable to: |
Weller WX Stations |
Part number: T0053419699
WX 1011 Set Power unit with 1 channel |
|
This station is ESD safe. | |
Dimensions L x W x H: | 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch) |
Weight: | approx. 3,2 kg |
Channels: | 1 |
Power supply: | 230 V, 50 Hz |
Power consumption: | 200 W |
Protection class: | I |
Temperature range: | Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools |
Temperature accuracy: | ± 9°C (± 17°F) |
Temperature stability: | ± 2°C (± 4°F) |
Equipotential bonding: | Via 3,5 mm pawl socket on back of device |
Material touch panel: | Made of antistatic coated material |
Dimensions touch panel: | 74 x 38 mm |
Resolution: | 255 x 127 (128) dots |
Display backlighting: | 4 LEDs |
Equipotentional bonding: |
The 3,5 mm switch offers four different options: |
USB interface: | USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
WXMP Set Active Tip Heating Technology |
|
Voltage (heater): | 12 V |
Heating output: | 40 W (55 W with RT 11) |
Heat-up time: | approx. 3 s 50°C - 350°C (120°F - 660°F) |
Temperature range: | 100°C - 450°C (212°F - 850°F) |
Tip type: | RT |
Connectable to: |
Weller WX Stations |
