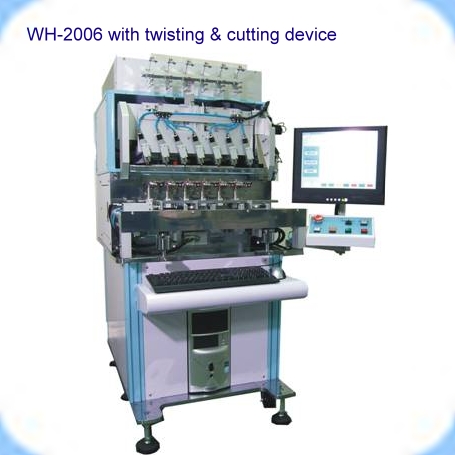

Wey Hwang WH-2006 六轴自动绕线机 (18,000 rpm)

Control System: CNC 6 Axis AC servo motor synchronizing control

Storage Method: Windows interface PC with USB connector & DVD ROM

Winding Spindle: 6 spindle, spindle distance: 70mm

Winding Speed: 18,000 rpm (Max)

Spindle Angle: 360°/ turn,Setting unit = 0.1°

Stop Accuracy: ± 0.1∘

Nozzle Move Distance

X Axis 100mm, Moving unit = 0.001mm

Y Axis 75mm, Moving unit = 0.001mm

Z Axis 65mm, Moving unit = 0.001mm

Wire Size: 0.02mm - 0.5mm

Max. Winding Diameter: 60mm

Max. Spread Width: 85mm

Wrapping speed: Max 150 rpm

Wrapping Angle: 0° , 90° , and 120°

Twisting Length: Max 250 mm / Twisting machine is optional device

Twisting Number: 1.3.5.7...in odd number / Twisting machine is optional device

Power supply: Single-Phase 220V +/- 10%, 50/60 HZ

Power consumption: 3KVA

Air Supply: 4~6 kcf/cm2

Machine Dimension: 110( L ) x 130(W ) x 155( H ) cm

Machine Weight: 450 KGS
