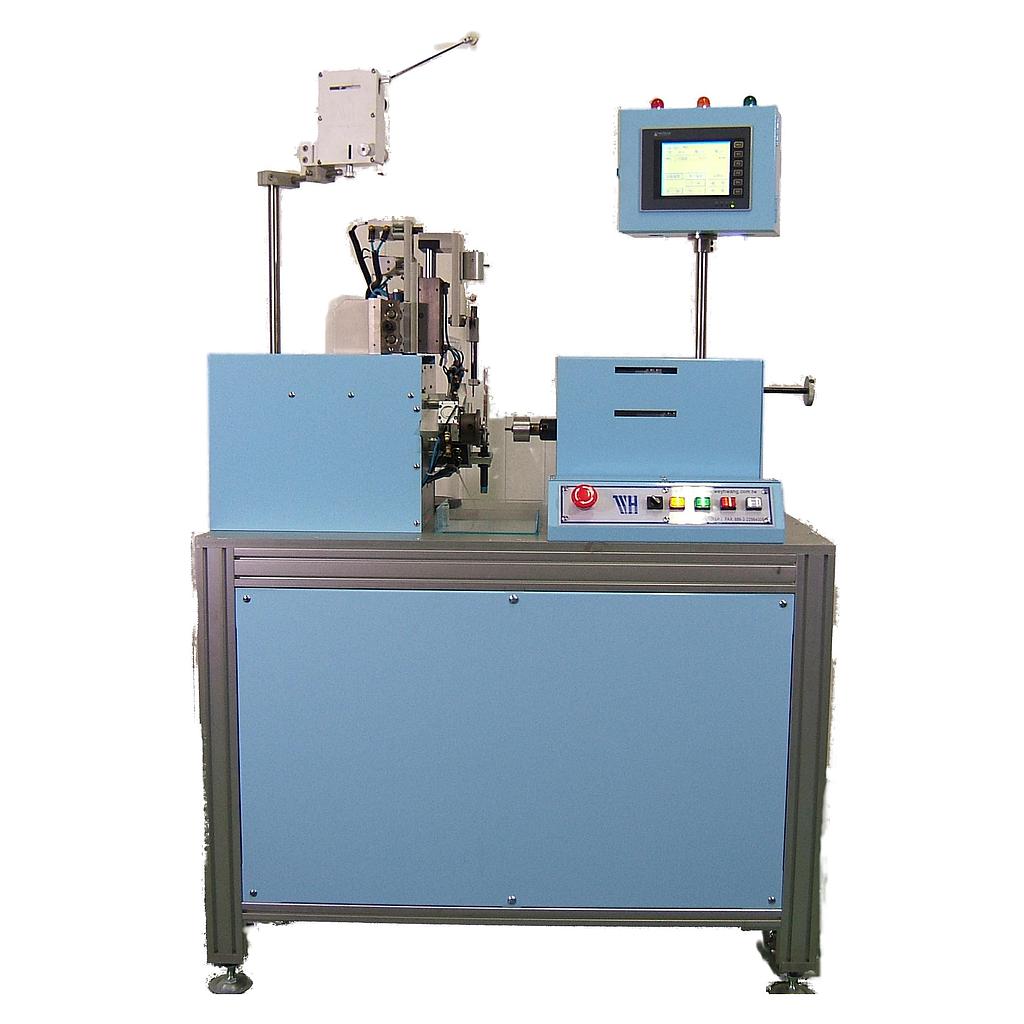

Wey Hwang WH-410 自动绕线机 (3000rpm,W.D 40mm)

Controlled system: CNC 6 Axis AC servo motor synchronizing control

Maximum speed: 3000 rpm (Max)

Minimum angel setting: 360∘/ turn,Setting unit = 0.1∘

Spindle stop precision: ± 0.1∘

Nozzle moving distance: 40mm; Movement unit 0.01mm

Wire size range: 0.04mm - 0.3mm

Maximum winding diameter: 40mm

Maximum winding width: 10mm

Wire bonding method: Hot air / Alcohol

Heat gun power: 270W

Power Source: Single phase 220V, 50/60 Hz
