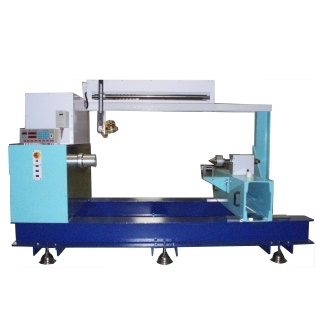

Wey Hwang WH-500C 高扭力绕线机 (600rpm,W.W 1000mm)

Control method: CNC, Computer numerical control

Speed: 600 rpm (Max.)

Wire Size: 0.5 - 10.0mm

Winding DIA.: 1000mm

Winding Width: 1000mm (Max.)

Wire Pitch: 0.001 – 9.999mm

Main Motor: 3HP AC motor

Winding Speed: 600 rpm (Max)

Power Source: 220V ± 10%; 50 / 60 Hz

Net Weight: 1230 KGS

Machine Dimension: 250 x 175 x 180 cm

Gross Weight: 1405 KGS

Packing Dimension: 267 x 161 x 188 cm
