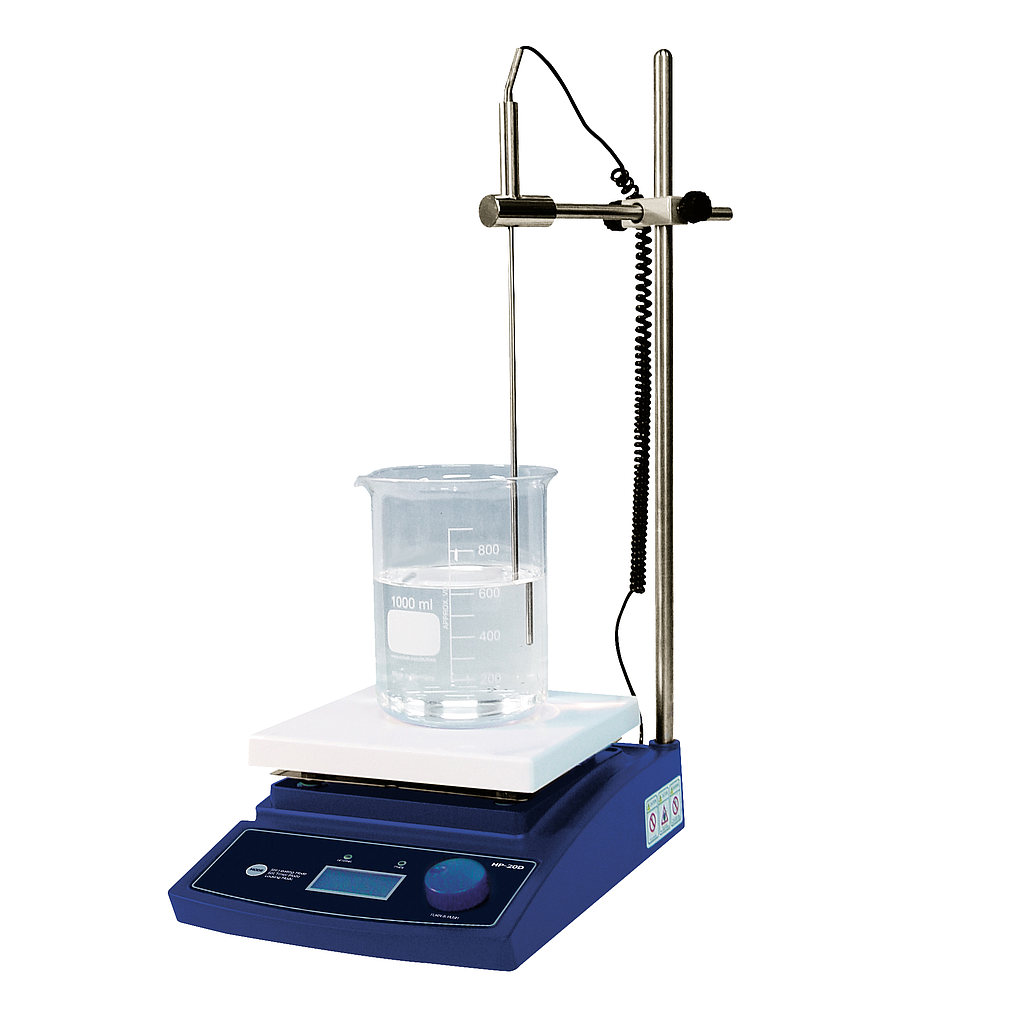

WITEG HP-30D 数字加热板 (380°C, ±0.3°C)

  • 制造商: WITEG
    Model: HP-30D Set
    P/N: DH.WHP03023
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Body: Powder-coated steel

Plate: ceramic-coated aluminium, 260x260mm

Temperature range & accuracy: max. 380°C, ±0.3°C

Temperature resolution: 0.1°C display, 0.5°C control

Temperature uniformity: special designed heating module: temperature difference less than 10%

Heating power/consumption: 1.2kW

Timer & alarm: 99hr 59min (with continuous run), error status and timer-end

Display: digital LCD with backlight function

Controller:  digital feedback controller with Jog-Dial (Turn+Push) and touch-button

Safety circuit: overheat protection

Permissible temperature & RH % : ambient temperature ±5 ~ 50°C; 85% RH

Dimension & weight: 286 x 387 x h99 mm, 3.2kg

Packaging size: 430 x 320 x h200 mm, 5kg

Power supply: 1 Phase AC 230V, 50/60 Hz

Set includes:

Hotplate HP-D

Temperature probe:  Φ4xL250 mm, cable length: 190mm

Stand rod: Φ12xL450 mm , stainless steel (stand rod for HP-20D with thread)

Holder / clamp / clip: for fixation temperature probe
