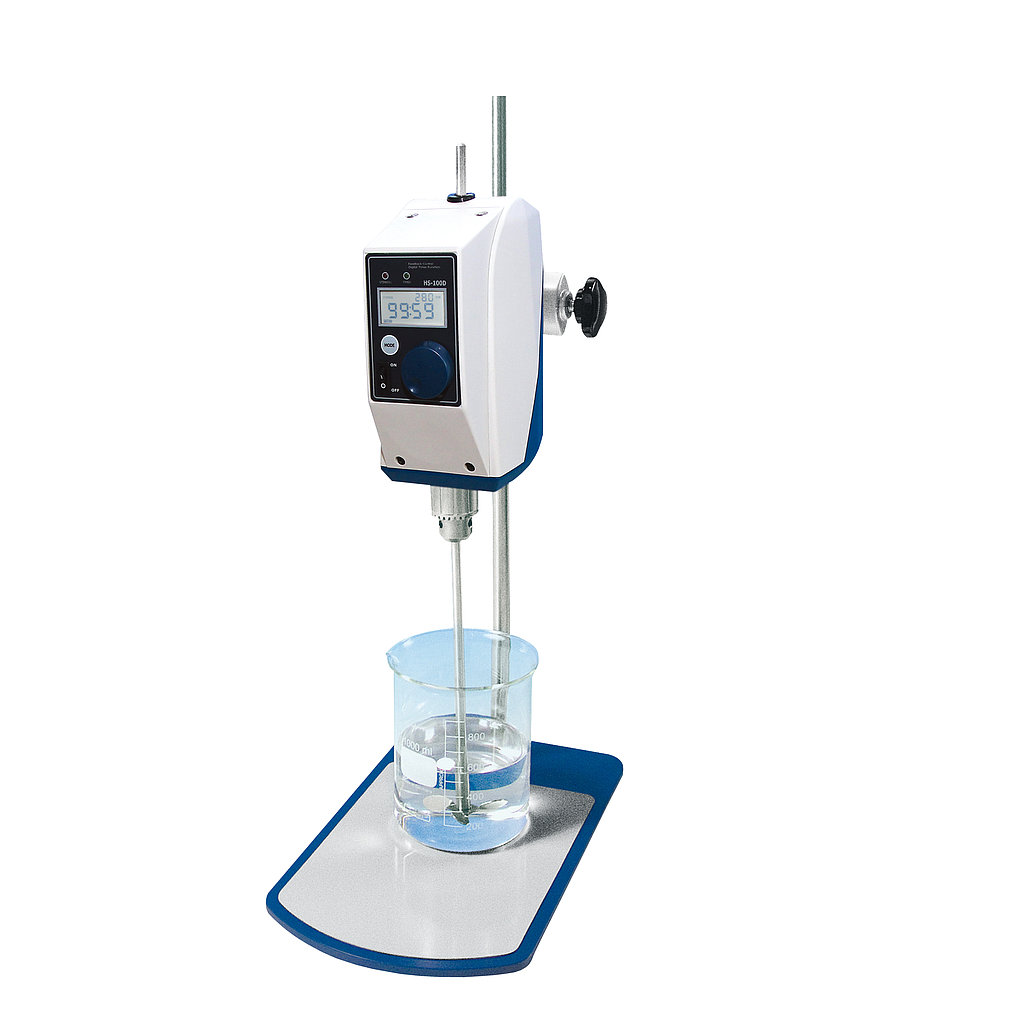

WITEG HS-100D-Set Digital Overhead Stirrer (200-3000 rpm; 50000 mPas)

Design: high-speed

Controller-type: digital, intergrated, Jog-Shuttle

Stirring capacity (H20): max. 20 l

Max. viscosity (mPas): 50000 mPas

Max. torque (N cm) at chuck: 145 N cm

Max. impeller shaft: Ø8 mm

Speed range: 200-3000 rpm

Timer & alarm: 99hr 59 min (with continous run), error status and timer-end

Controller: digital Feedback Controller with Jog-Shuttle (Turn+Push)

Display: digital LCD with backlight function

Permissible temperature & RH %: ambient temperature 0~40°C, 80% RH

Safety device: overheat & overload protection

Dimension & weight: 90x145xh180 mm, 5.3 kg

Packaging size: 320x300xh180 mm, 8 kg

Material: ABS & Aluminium

Power supply: 1 Phase AC 230V, 50/60 Hz

Set includes:

Unit HS-D

Impeller HS-100D: PL015 4-bladed Ø70 mm

Clamp CL200

Plate stand HS-100D: ST120 30x40 cm


Details

Datasheet


Manual
