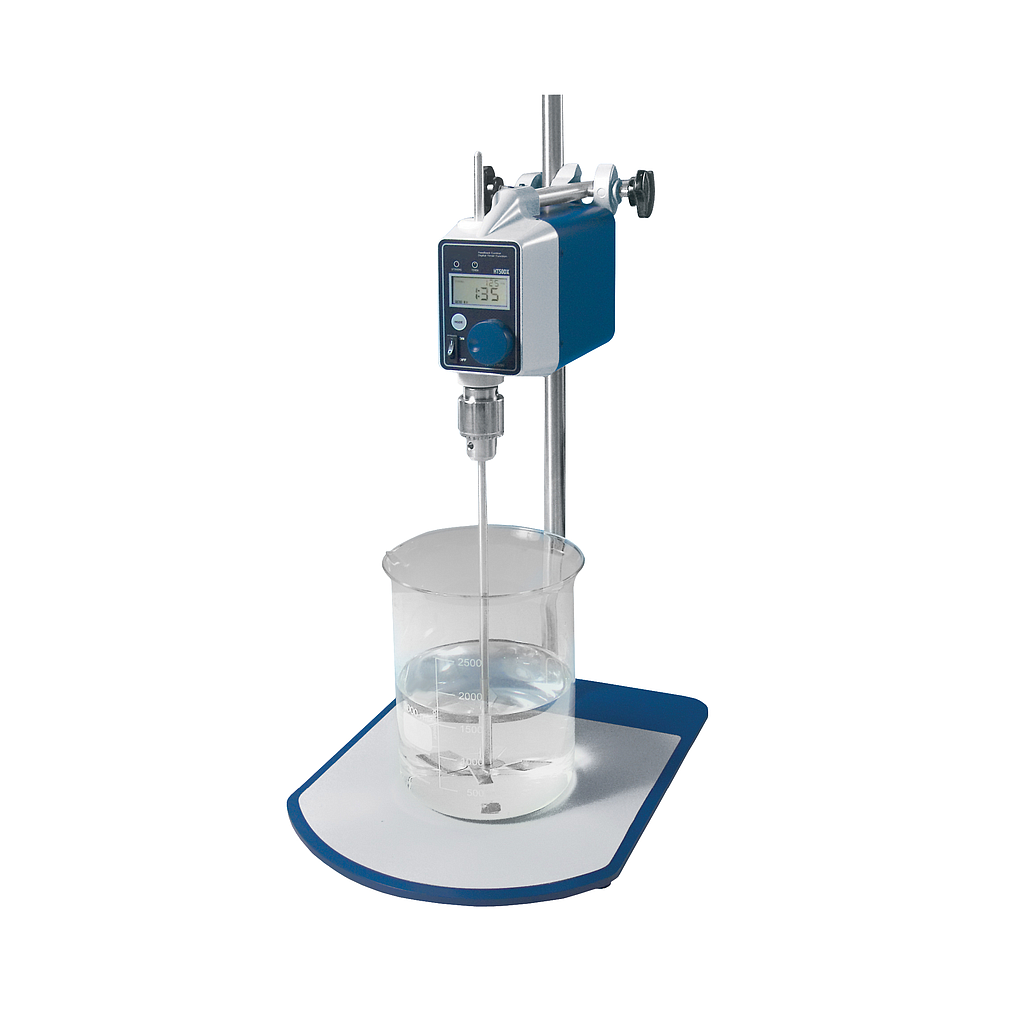

WITEG HT-120DX-Set Overhead Stirrer (50-1000 rpm; 150.000 mPas)

Design: high-torque

Controller-type: digital, intergrated, Jog-Shuttle

Stirring capacity (H20): max. 60 l

Max. viscosity (mPas): 150.000 mPas

Max. torque (N cm) at chuck: 500 N cm

Max. impeller shaft: Ø10 mm

Speed range: 50-1000 rpm

Timer & alarm: 99hr 59 min (with continous run), error status and timer-end

Controller: digital Feedback Controller with Jog-Shuttle (Turn+Push)

Display: digital LCD with backlight function

Permissible temperature & RH %: ambient temperature 0~40°C, 80% RH

Safety device: overheat & overload protection

Dimension & weight: 90x210xh130 mm, 4 kg

Packaging size: 320x300xh180 mm, 8 kg

Material: ABS & Aluminium

Power supply: 1 Phase AC 230V, 50/60 Hz

Set includes:

Unit HT-DX

Impeller PL020 4-bladed Ø90 mm

Clamp CL200

Plate stand HT-120DX: ST200 39x up to 75 cm
