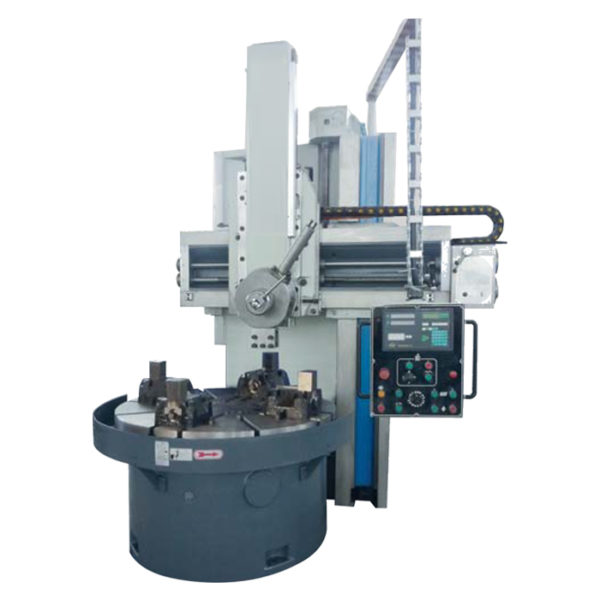

WMT CNC C5116D 立式铣床 (5-160rpm)

Table dia.: 1400mm

Max. turning dia.: 1600mm

Max. workpiece height: 1000/1200/1400/1600mm

Max. workpiece weight: 5t

Table speed range: 5-160r/min

Table rotation speed step: 16

Vertical toolpost feed range: 0.8-86 r/min

Vertical side toolpost feed step: 12

Horizontal travel of vertical toolpost: 915mm

Vertical travel of vertical toolpost: 800/1000mm

Crossarm travel: 850/1050/1250/1450mm

Main motor power: 30kW

Feeding motor power: 1.3/1.8kw

N.W: 12.7t

Overall size(LXWXH): 2662x2800x3550mm
