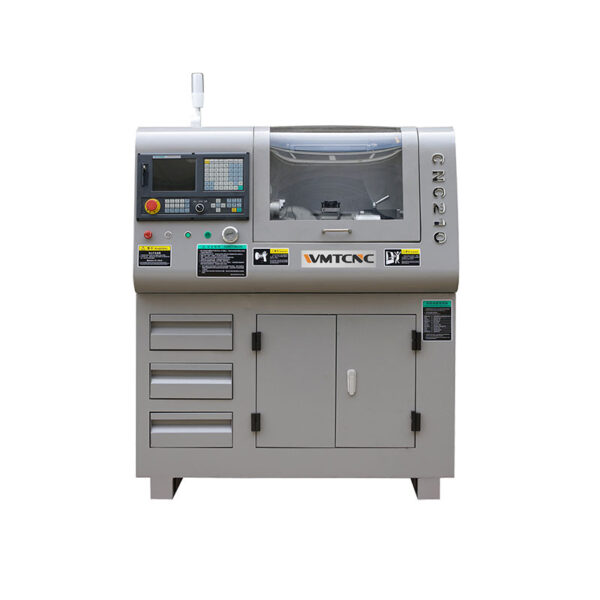

WMT CNC CNC-210 平板数控车床 (210mm)

Max. swing over bed: 210mm

Distance between centers: 400mm

Spindle bore dia.: 26mm

Spindle taper: MT4

Spindle speed: 3000rpm

Tool post: 4-position

Gangtool bar size: 12mm

X-axis  travel: 90mm

Z -axis travel: 300mm

X moving speed: 2000mm/min

Z moving speed: 2000mm/min

Spindle motor power: 1.2kw

X motor torque: 3N.m

Z motor torque: 3N.m

Min. setting unit: 0.001mm

Tailstock dia.: 22m

Tailstock tavel: 50mm

Tailstock taper: MT2

Overall size: 1170X700X860mm

N.W: 200kgs
