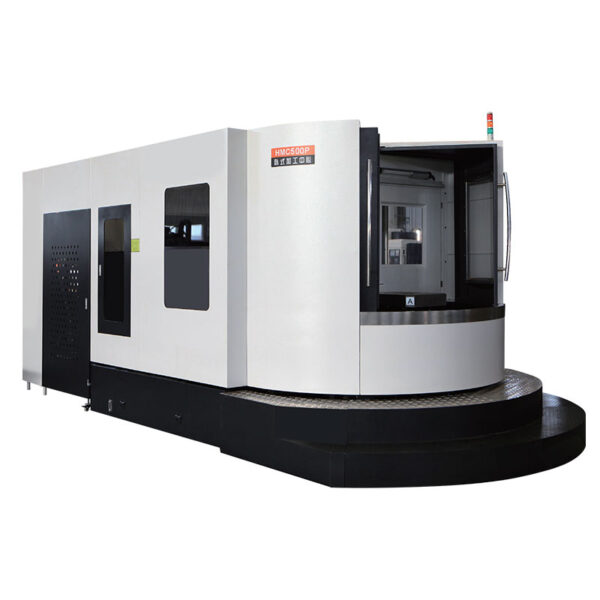

WMT CNC HMC500P 卧式加工站 (15/18.5kW)

Table size: 500×600mm

Maximum weight support of table: 600kg

Number of workstations: 2

Distance from spindle center to workbench as the straight line: 0~750mm

Workpiece diameter: 950mm

Bench changing time: 35s

Work schedule (x/y/z): 1050/750/900mm

Fast moving distance (X/Y/Z): 30/30/30m/min

Spindle power: 15/18.5kW

The highest speed: 6000rpm

Spindle diameter: 100mm

Positioning accuracy: 0.01mm

Repeat positioning accuracy: 0.006mm

Dao database: 24T

Tool change time: 4.5s

Length x width x height: 6600x4300x2850mm

Machine weight: 13000kg
