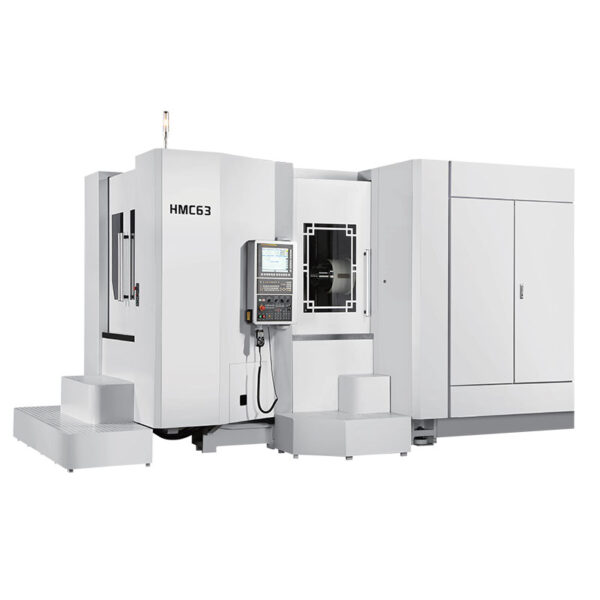

WMT CNC HMC63 卧式加工站
制造商: WMT CNC Model: HMC63 保障: 12 Month - 报价要求
- 联系
Table size: 630×630mm
Maximum weight support of table: 1200kg
Number of workstations: 1
Distance from spindle center to workbench as the straight line: 100~1000mm
Workpiece diameter: 1050mm
Work schedule (x/y/z): 1050/900/1030mm
Fast moving distance (X/Y/Z): 60/60/60m/min
Spindle power: 18.5*26kW
The highest speed: 8000rpm
Spindle diameter: 100mm
Positioning accuracy: 0.01mm
Repeat positioning accuracy: 0.006mm
Dao database: 40T
Tool change time: 2.5s
Length x width x height: 6485x3865x3300
Machine weight: 18200kg
