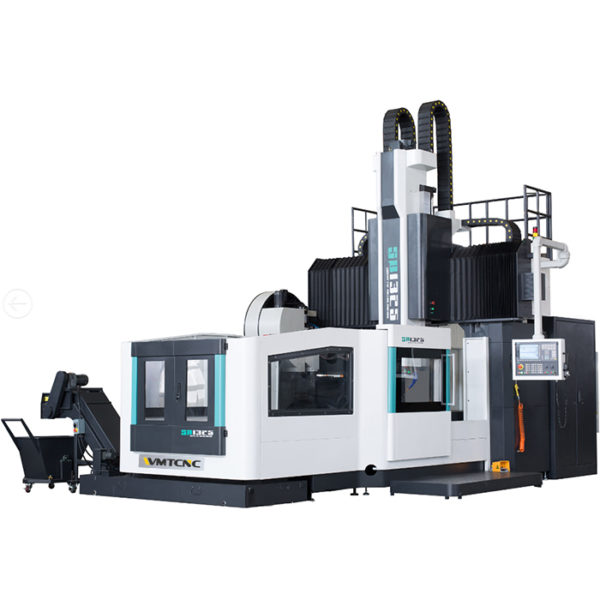

WMT CNC SP-1325 龙门式数控铣床 (15/18.5KW)
制造商: WMT CNC Model: SP-1325 保障: 12 Month - 报价要求
- 联系
X-axis travel: 2600mm
Y-axis travel: 1400 +160mm(tool change)
Z-axis travel: 800mm
Distance from spindle nose to worktable surface: 150-950mm
Worktable size (WxL): 2500×1100mm
T-slots size (NxWxD): 7-22-160mm
Max. load bearing of worktable: 4000kgs
X/Y/Z guideway size: Roller 2-45/2-45mm,Z-axis hard guideway
Rapid feed speed of X axis: 10000 mm/min
Rapid feed speed of Y axis: 10000 mm/min
Rapid feed speed of Z axis: 10000 mm/min
Main motor power: 15/18.5KW
Spindle model: BT50/Φ150
Motor torque: 143N.M
Spindle taper: BT50
Driven type: Direct drive/Gear box 1:4
X/Y/Z linear guideway size: X/Y-axis 2-45# roller linear guideways
X/Y/Z ball screw size: X-axis 6316,Y-axis 5016,Z-axis 5016
Max. tool dimension: Φ110/Φ220mm
Max. length of tool: 350mm
Max.tool weight: 20kgs
Positioning accuracy: 0.03mm
Re-positioning accuracy: 0.018mm
Machine weight: 21000kg
Overall size (LxWxH): 7800x5500x5000mm
